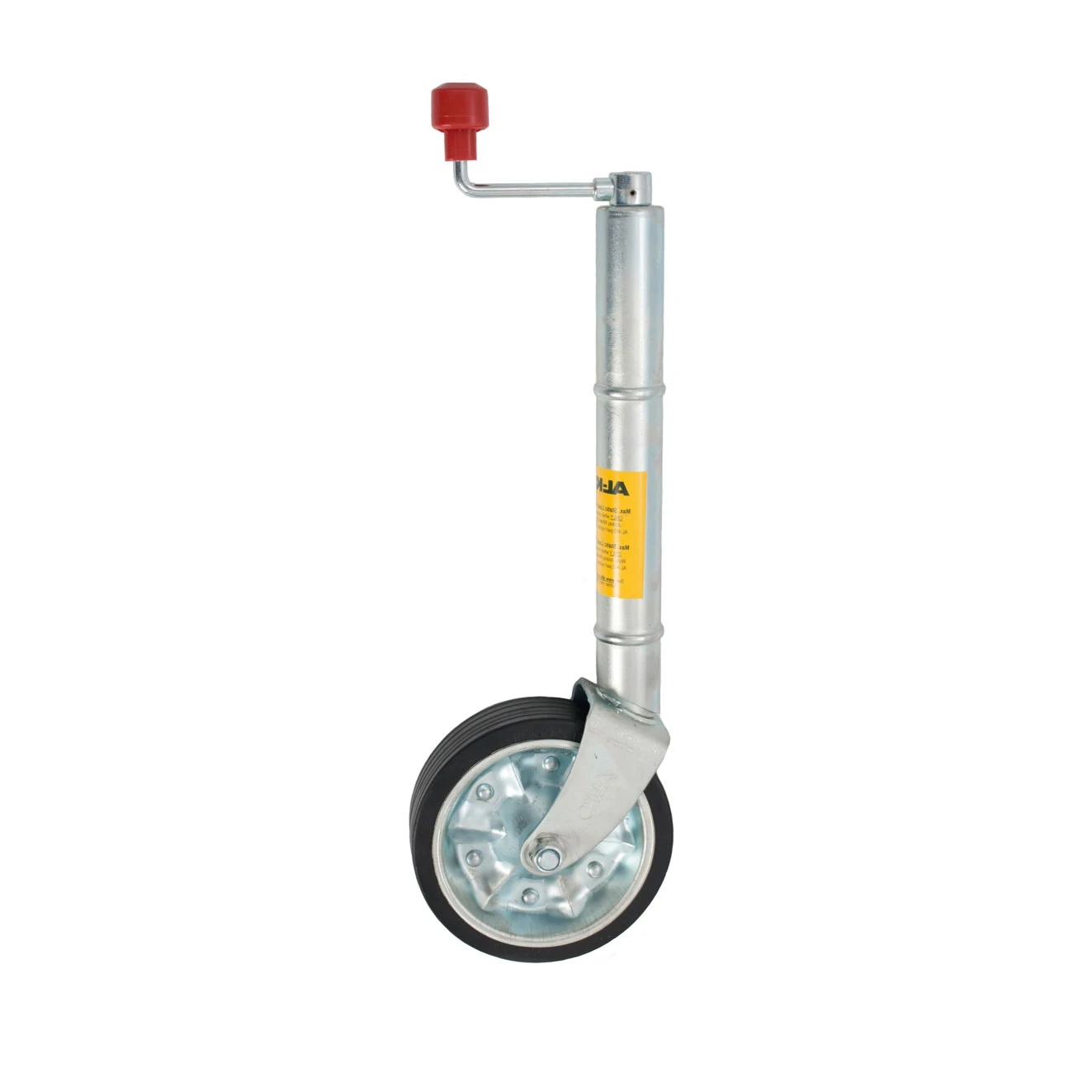

ALKO 628100 Jockey Wheel – 200mm 8″ Wheel – With Weld On Or Bolt On Clamp AL-KO

Features:

• Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel
• This unique design is covered by Registered Design in Australia and New Zealand

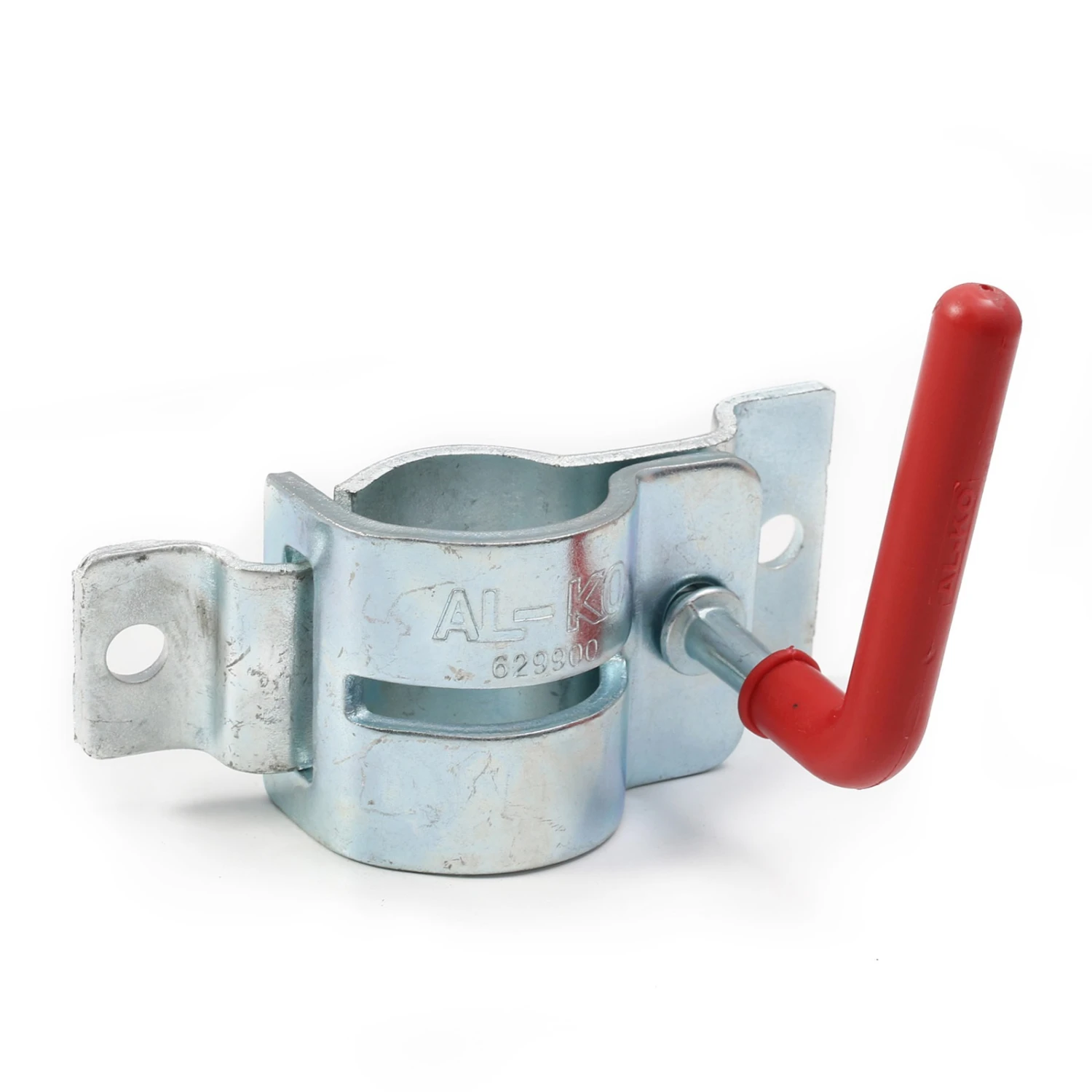

• The swivel bracket can be either welded or bolted to the drawbar
• A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar
• Ideal for marine use

Specifications:

• Surface finish: Zinc Plated
• Static Capacity: 400kg
• Outer Tube Dia.: 48mm
• Weight: 7kg
• Wheel Dia.: 200mm
• Mount holes per side: 1
• Mounting Hole Dia.: 13mm
• Hole spacing: 150mm
• Height Closed (H1):567mm
• Height Open (H2):832mm
• Bottom of wheel to bottom rib center when closed (G1): 262mm
• Bottom of wheel to bottom rib center when closed (G2): 522mm

UPC:

• 9320570281007
