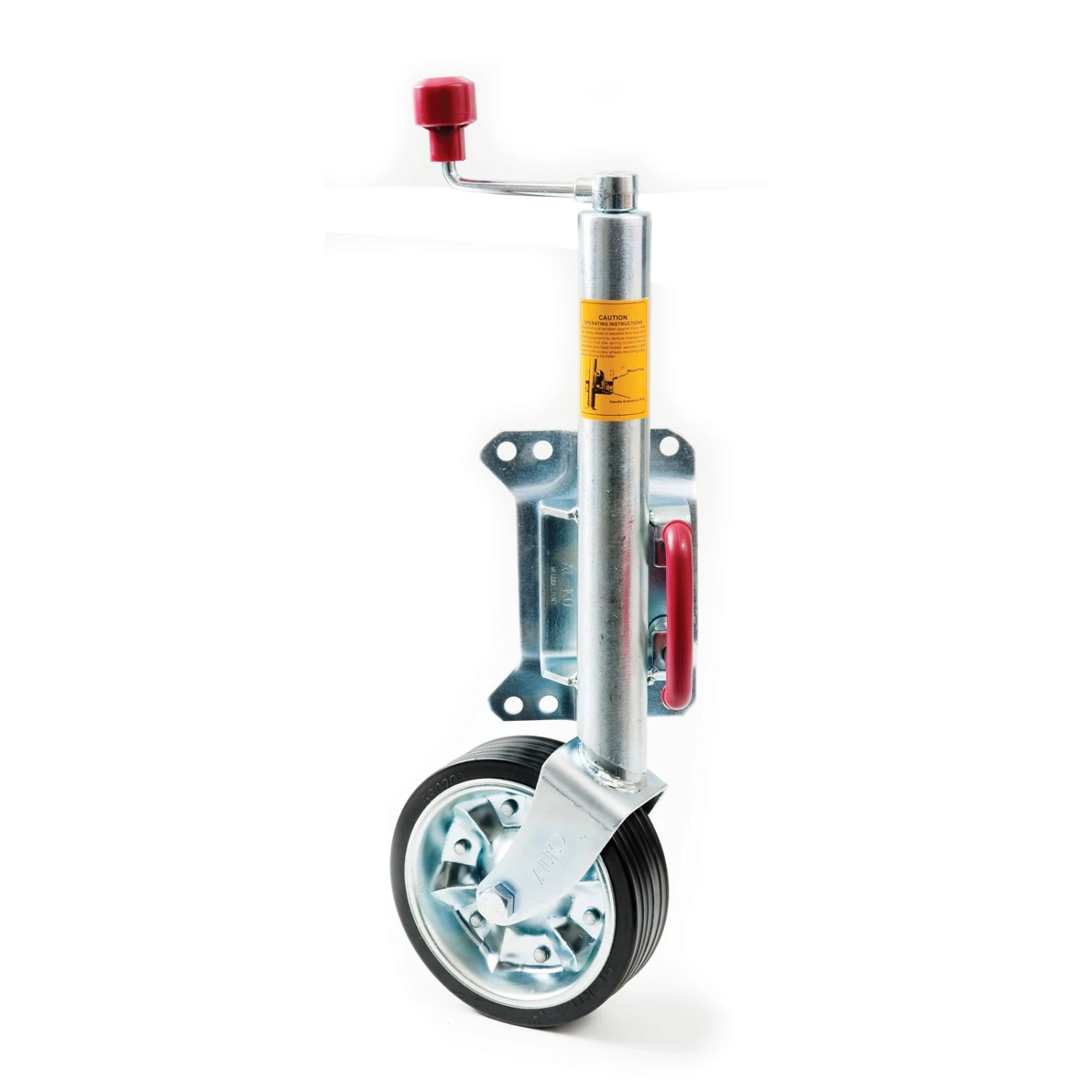

ALKO 628200 Jockey Wheel – 8″ Wheel With Large Locking Pin Swivel Bracket AL-KO

Description:

• Ease of use is the benefit when selecting an AL-KO Swivel Bracket Jockey Wheel. No need to remove it from the trailer – just pull the release handle and the jockey wheel rotates into a suitable traveling position. This unique design is covered by Registered Design in Australia and New Zealand. The swivel bracket can be either welded or bolted to the drawbar. A selection of mounting holes allows the use of u-bolts to attach the jockey wheel to the trailer drawbar. Ideal for marine use

Specifications:

• Surface finish: Zinc Plated
• Static Capacity: 400kg
• Outer Tube Dia.: 48mm
• Weight: 8.5kg
• Wheel Dia.: 200mm
• Mount holes per side: 4
• Mounting Hole Dia.: 14mm

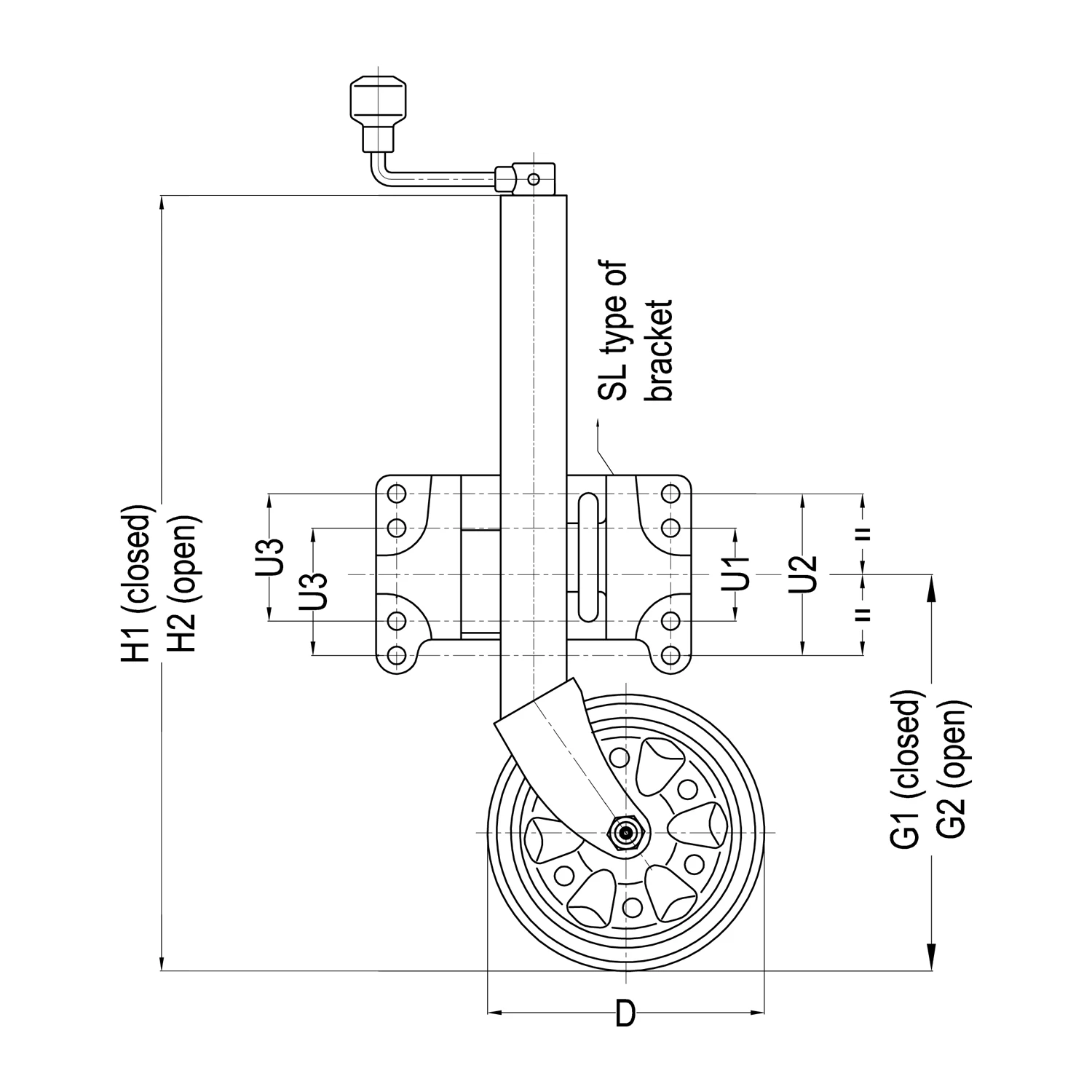

• Min Spacing (U1): 63mm
• Max Spacing (U2): 113mm
• Height Closed (H1):570mm
• Height Open (H2):820mm
• Bottom of wheel to mounting plate center when closed (G1): 310mm
• Bottom of wheel to mounting plate center when closed (G2): 560mm

UPC:

• 9320570282004
