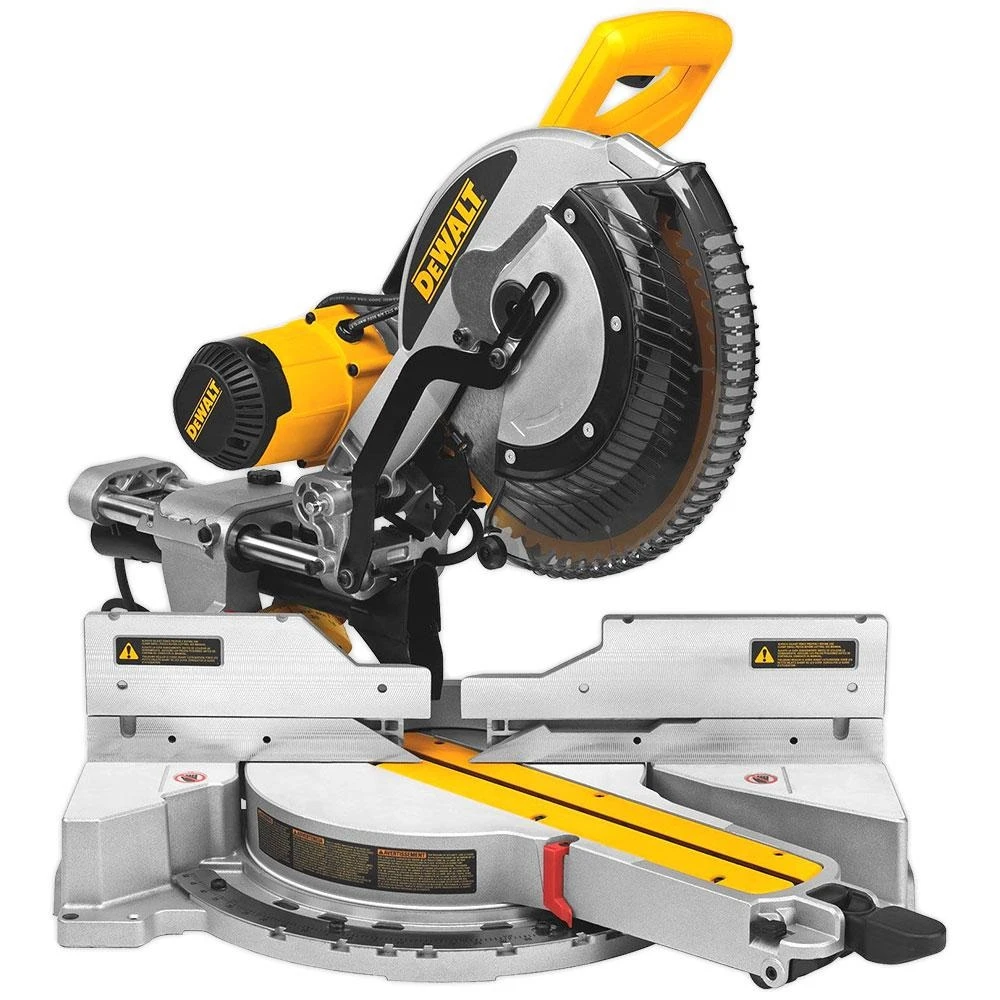

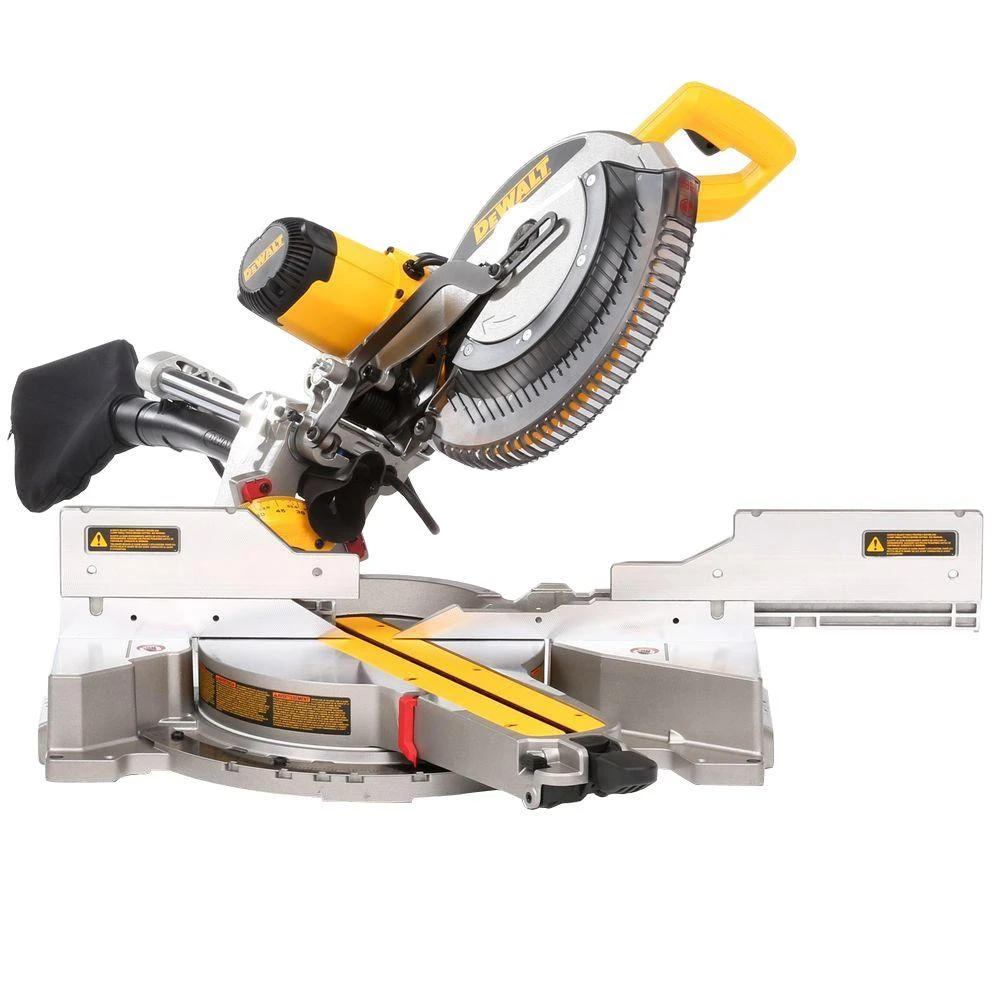

DeWALT DWS780-XE 12” 305mm Double Bevel 1675W Slide Compound Mitre Saw With XPS

Description:

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Heavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool

Features:

• Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mm
• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required
• Heavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool.
• New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and right
• Easy to use mitre and bevel controls making the tool fast and simple to change from one set up to another
• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° – 50° left and 0° – 60° right
• Long life Accuracy in Table and Fence Design
• The large dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Linear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wide
• Compact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsite
• Outstanding dust control and deflection away from cutting area
• Electronic speed control for adjusting cutting speed when cutting materials other than wood
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications

Specifications:

• Power Input 1675 Watts
• Power Output 960 Watt
• Voltage 240V
• Power Source AC
• Blade Speed 1900 – 3800 rpm
• Blade Diameter 305 mm
• Blade Bore 30 mm
• Bevel Capacity 49/49 °
• Mitre Capacity [right/left] 60/50 °
• Cutting Capacity at 90°/45° (W x H) 211 x 112 mm
• Cutting Capacity at 90°/90° (W x H) 303 x110 mm
• Cutting Capacity at 90°/90° (W x H) 345 x 76 mm
• Cutting Capacity at 45°/90° (W x H) 268 x 63 mm
• Cutting Capacity at 45°/90° (W x H) 345 x 44 mm
• Cutting Capacity at 90°/45° (W x H) 244 x 76 mm
• Cutting Capacity at 45°/45° 212 x 76 mm
• Depth of Cut [Saws] 170 mm
• Weight 24.8 kg
• Depth 470 mm
• Length 770 mm
• Height 396 mm

Standard:

• High Quality 60 tooth blade
• Blade spanner
• Dust bag
• Material Clamp

UPC:

• 5035048355121
