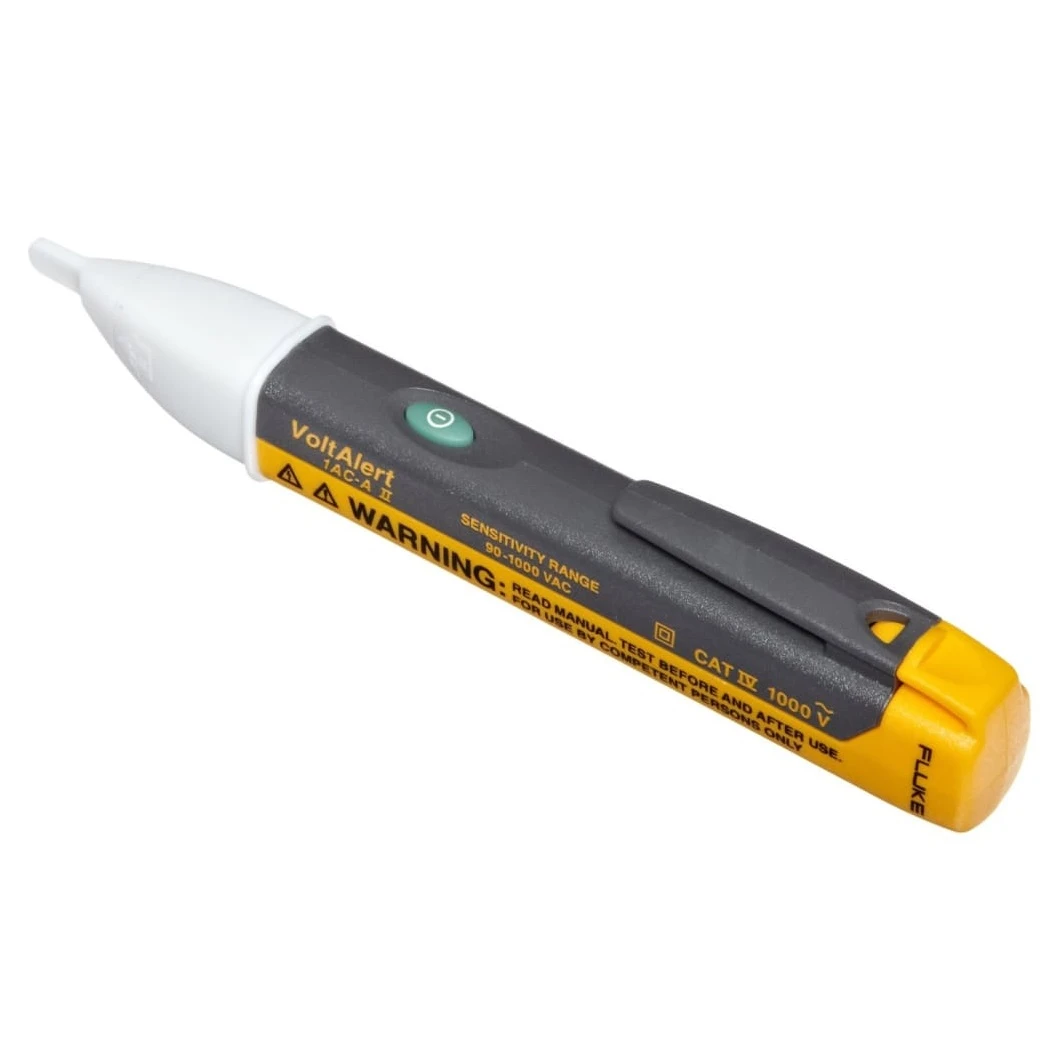

Fluke 1AC-A1-II Non-Contact Voltage Tester Alert Volt Stick 90-1000V

Description:

• The pocket-sized voltage detector
• The portable 1AC II non-contact voltage tester from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home and even detect miswires of an electrical outlet
• The tip glows red and a beeper sounds when voltage is detected
• A loud, easy to hear beeper will sound and the tip will glow red when voltage is detected
• Optionally, the beeper can be disabled for use in quiet environments
• Continuous self-test so you always know it’s working
• When the tip blinks red you know it’s working properly
• Provides a continual visual indication that the 1AC II is on
• 90 V to 1000 V AC or 200 V to 1000 V AC voltage detection range for wide application use
• Wide voltage detection range allows for use in a broad range of applications
• Also available in a low voltage model from 20 V to 90 V AC for controls circuits
• Safety features
• Rated to CAT IV 1000 V for added protection
• CE and CSA approved
• Additional tool features
• Audible/Silent mode for added convenience in quiet environments
• On/Off button
• Batteries included

Features:

• Be aware of voltage easily – the tip glows red and a beeper sounds when voltage is detected
• Continuous self-test so you always know it’s working
• Voltage detection range for wide application use – 90 V to 1000 V AC or 200 V to 1000 V AC
• Audible/Silent mode for added convenience

Specifications:

• Operating Principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
• Voltage sensing ranges Nominally, 90 V AC to 1000 V AC
• Detector tip style Flat-tip
• Light source One high intensity red LED
• Agency Approvals ‍‍‍
• Safety IEC 61010-1: Pollution Degree 2, IEC 61010-2-030: CAT IV 1000 V
• EMC IEC 61326-1: Portable
• IP Rating IP 40
• Operating Temperature -10°C to 50°C (-14°F to 122°F)
• Operating Humidity Ranges 0% to 95% (0°C to 30°C)
• 0% to 75% (30°C to 40°C)
• 0% to 45% (40 to 55°C)
• Operating Altitude 3000 m
• Cleaning Clean with damp cloth
• Batteries 2 AAA alkaline batteries included
• Battery Life Typical battery life of greater than 1 year

Includes:

• Fluke 1AC-II Non-Contact Voltage Tester
