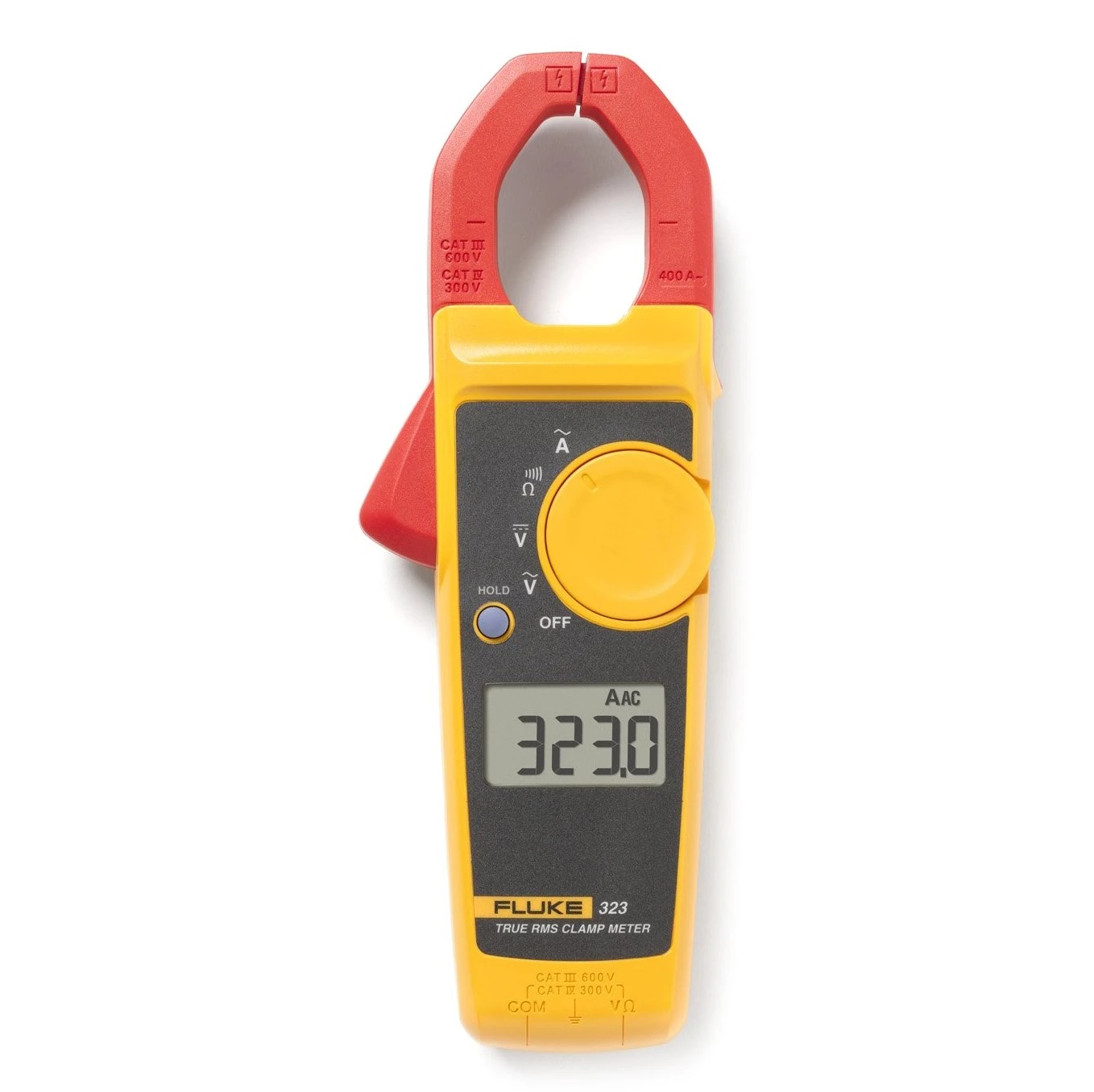

Fluke 323 600V 400A True RMS Clamp Meter

Description:

• Fluke 323 True-RMS clamp meter delivers rugged reliable performance for general electrical troubleshooting
• The Fluke 323 clamp meter is a good basic troubleshooting tool for commercial and residential electricians. It includes True RMS measurements, optimized ergonomics, and large display for efficient troubleshooting. It’s designed to perform in the toughest environments and provide noise-free, reliable results, so you can trust it to help you confidently diagnose problems almost anywhere. Use it to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts. Its slim, compact size and rugged design make it well suited for measuring current up to 400 A in tight cable compartments
• The Fluke 323 comes with a two-year warranty and a soft carrying case

Features:

• Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
• Measures AC current to 400 A
• Measures AC voltage and DC voltage to 600 V
• Provides True RMS AC voltage and current for accurate measurements on non-linear signals
• Measures resistance to 4 kΩ with continuity detection
• Features slim, ergonomic design for measuring in tight cable compartments
• Presents measurements on a large, easy-to-read display
• Hold function captures a reading on the display
• Features a CAT III 600 V, CAT IV 300 V safety rating
• Comes with a two-year warranty and soft carrying case

Specifications:

• AC current Range 400.0 A
• Accuracy 2% ± 5 digits (45 Hz to 65 Hz)
• DC current Range –
• Accuracy –
• 5% ± 5 digits (65 Hz to 400 Hz)
• AC voltage Range 600.0 V
• Accuracy 1.5% ± 5 digits
• DC voltage Range 600.0 V
• Accuracy 1.0% ± 5 digits
• Resistance Range 400.0 Ω/ 4000 Ω
• Accuracy 1.0% ± 5 digits
• Continuity ≤ 70 Ω
• AC response True-RMS
• Data hold Yes
• Size H x W x D (mm) 207 x 75 x 34
• Max wire diameter 30 mm (600 MCM)
• Weight 265 g
• Category rating CAT III 600 V
• CAT IV 300 V

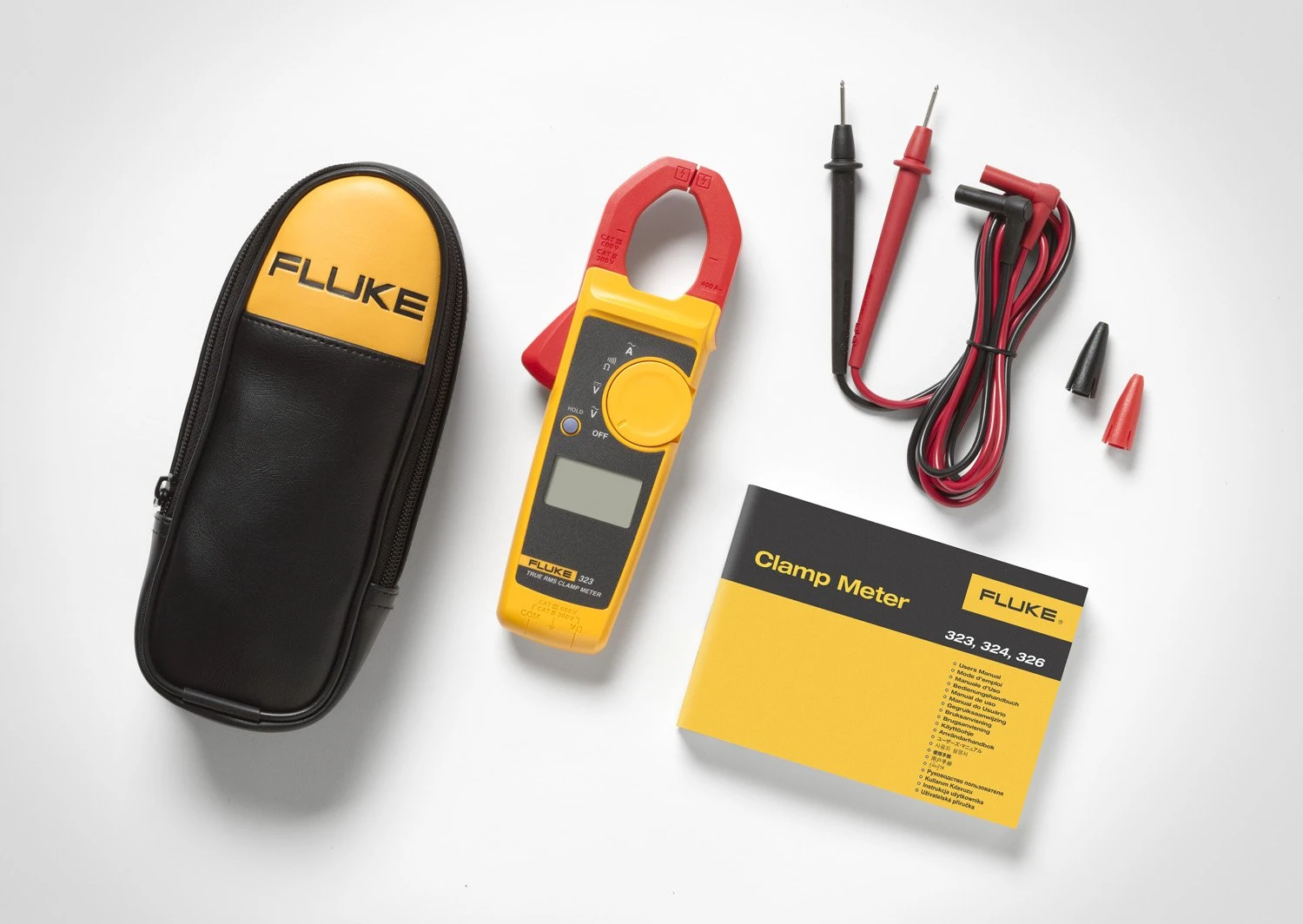

Includes:

• Test leads
• Soft case
• User’s manual

UPC:

• 095969734189
