Features:
- Accurate in Clockwise Direction +/- 3% from 20% to 100% of full scale
- Meets ISO 6789 Specifications and is calibrated on test equipment complying with accuracy requirements of ASME B107.300-2010
- Meets or Exceeds ASME B107.14M 1994
- Thin Profile, Sealed Tear-Drop Head Design for access & durability
- Pull Adjustment Collar for easy and quick torque setting changes
- Stamped Scale on Beam & Thimble Collar for durability and visibility

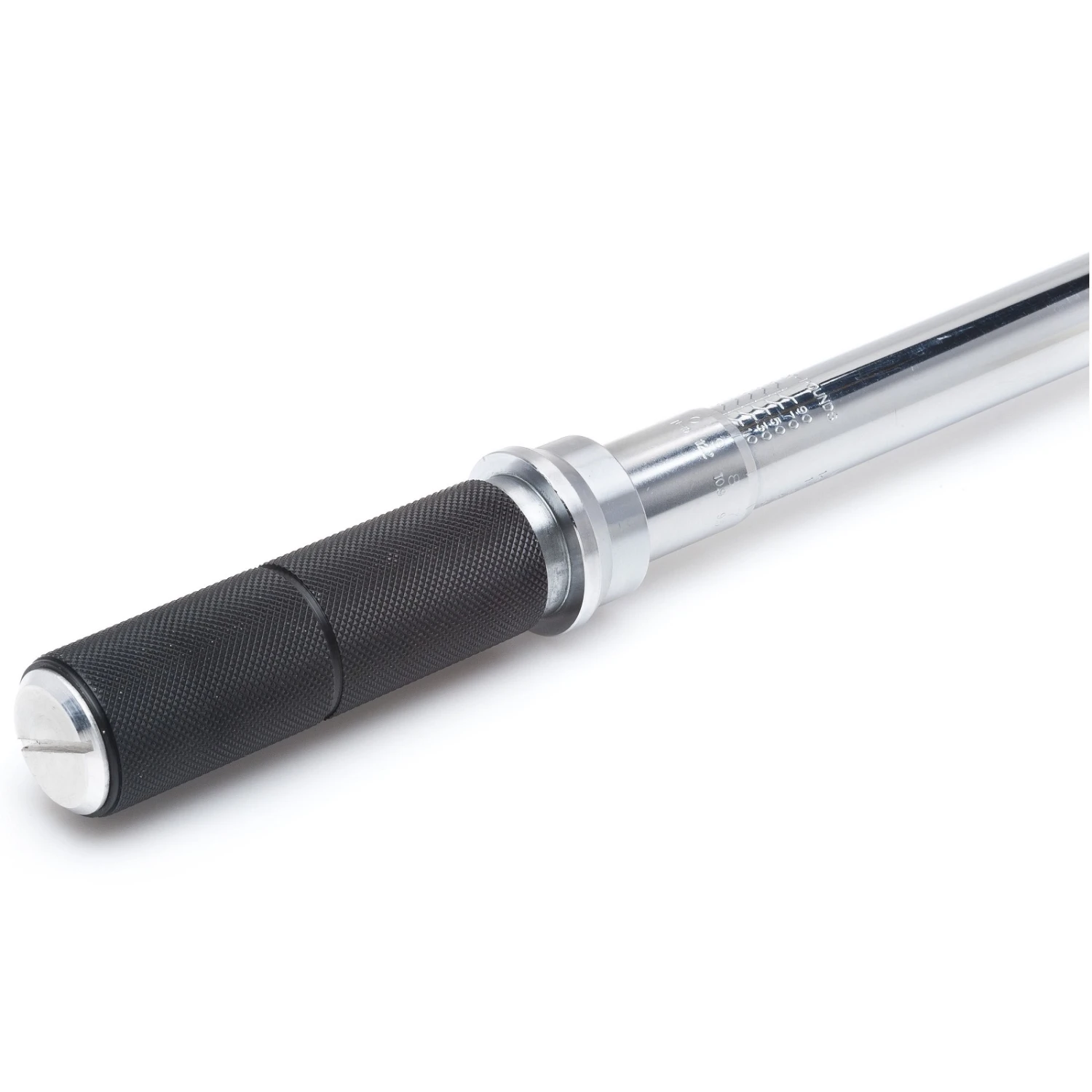

- Knurled Anodized Aluminum Handle for comfortable grip
- Mid-Point on Handle clearly marked for accuracy
Specifications:
- Overall Length 35.56 cm / 14 in
- ASME Specification B107.14M
- Drive Tang Size 3/8 in
- Head Thickness 1.8288 cm / 0.720 in
- Head Width 3.55 cm / 1.40 in
- Min Torque 3.38 nm/ 30 in/lb
- Max Torque 28.24nm / 250 in/lb
- Alt Scale Increments 0.23 nm
- Primary Scale Increments 1 in/lb
- Torque Accuracy (20-100% of Full Range) +/-3% Clockwise
UPC:
- 099575850615
