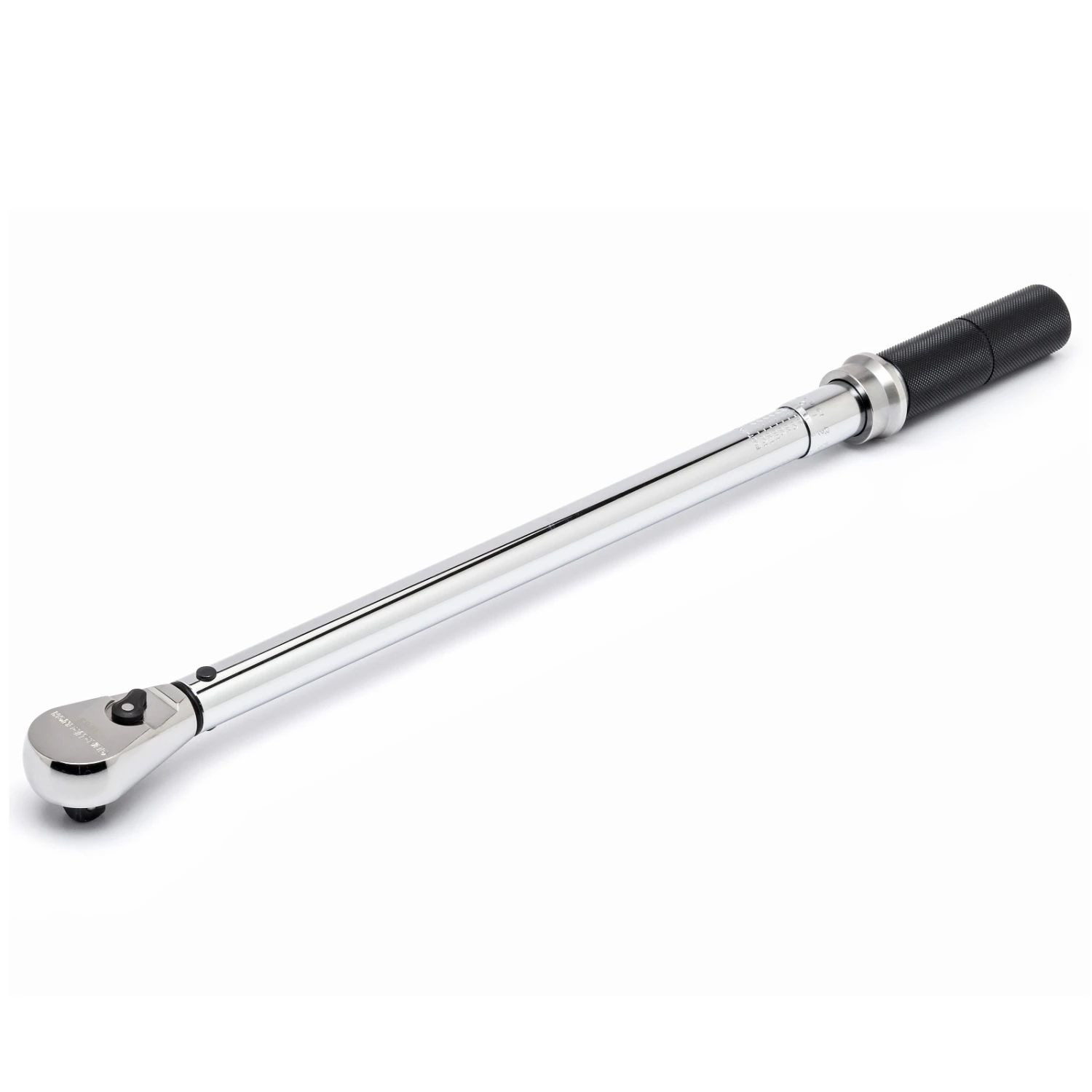

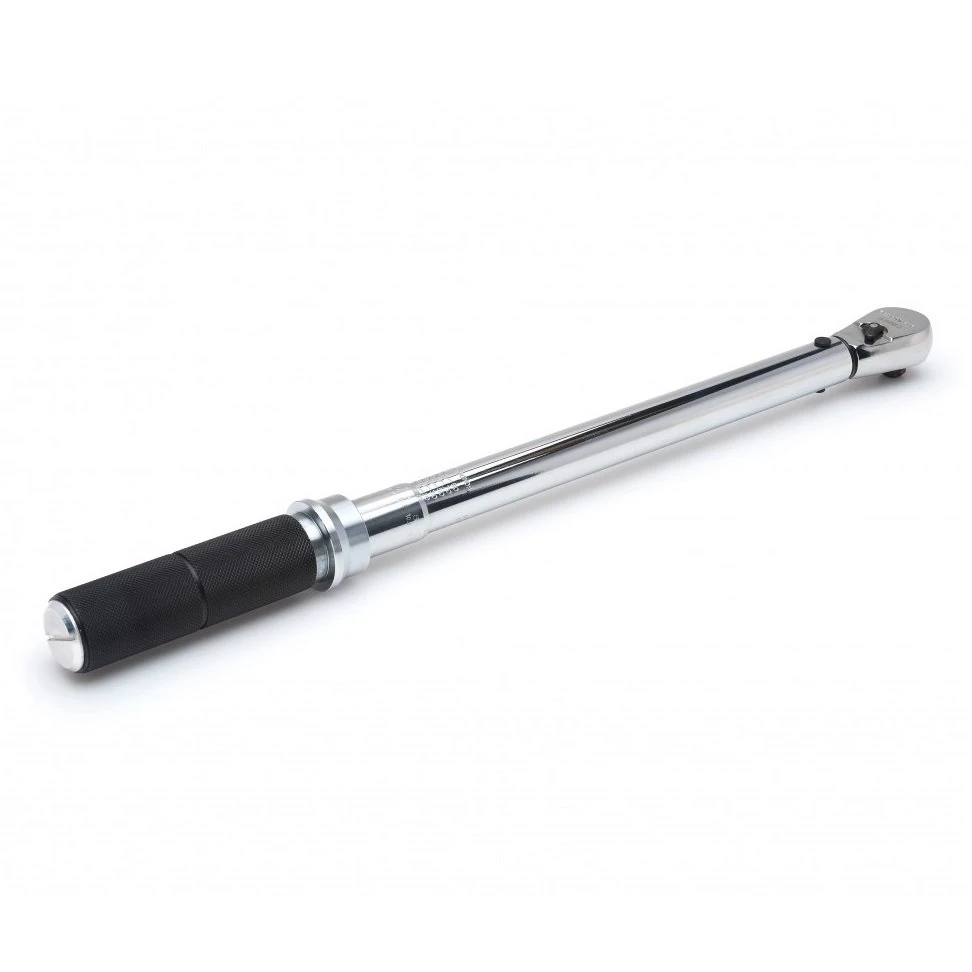

GEARWRENCH 85066M 1/2″ Square Drive Micrometer Torque Wrench 40-340Nm 30-250 Ft/lbs

Features:

• Accurate in Clockwise Direction +/- 3% from 20% to 100% of full scale
• Meets ISO 6789 Specifications and is calibrated on test equipment complying with accuracy requirements of ASME B107.300-2010
• Meets or Exceeds ASME B107.14M 1994
• Thin Profile, Sealed Tear-Drop Head Design for access & durability
• Pull Adjustment Collar for easy and quick torque setting changes
• Stamped Scale on Beam & Thimble Collar for durability and visibility

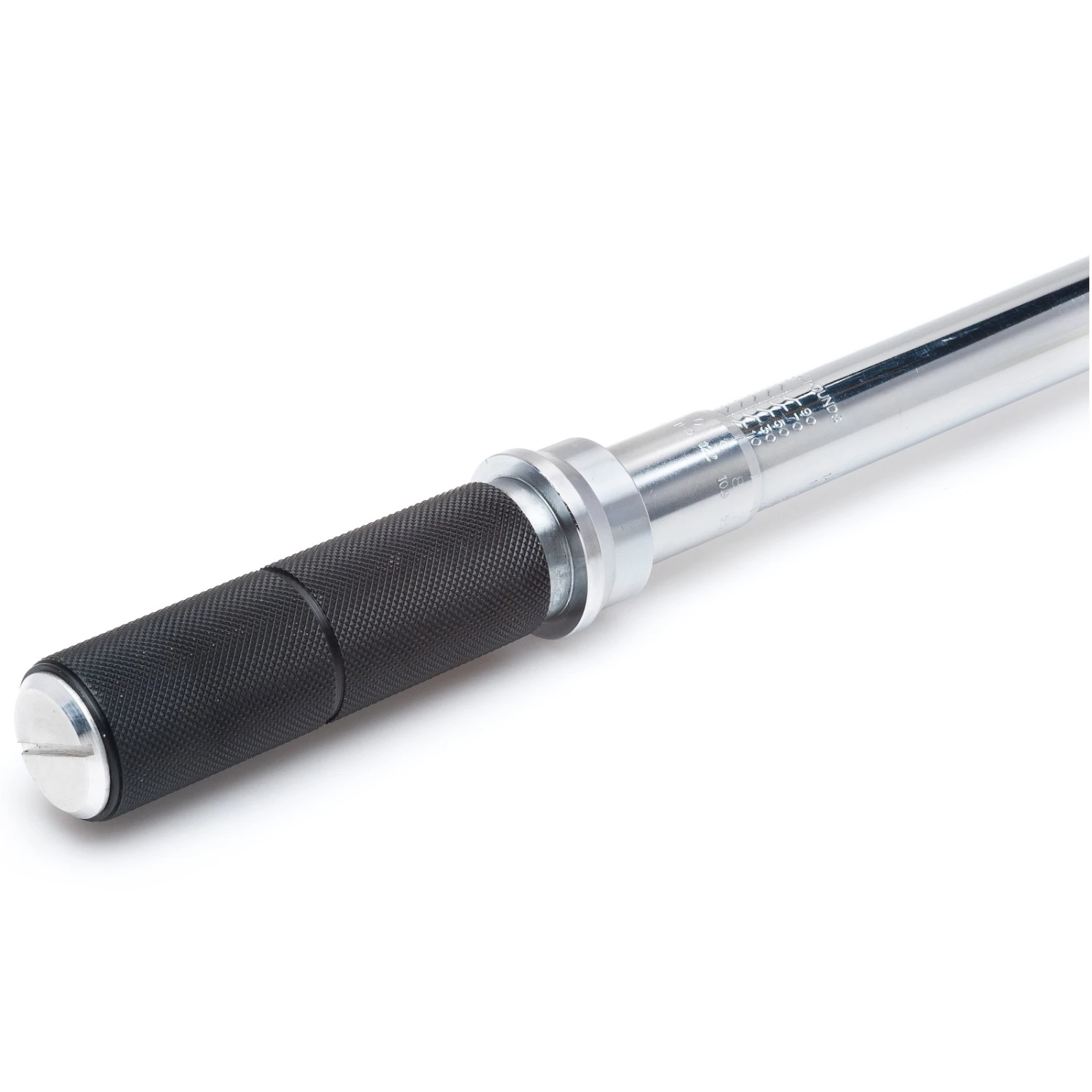

• Knurled Anodized Aluminum Handle for comfortable grip
• Mid-Point on Handle clearly marked for accuracy

Specifications:

• Overall Length 24.25 in
• ASME Specification B107.14M
• Drive Tang Size 1/2 in
• Head Thickness 0.9 in
• Head Width 1.730 in
• Min Torque (Primary Scale) 30 ft/lb
• Max Torque (Primary Scale) 250 ft/lb
• Alt Scale Increments 2.7 nm
• Primary Scale Increments 2 ft/lb
• Torque Accuracy (20-100% of Full Range) +/-3% Clockwise

UPC:

• 099575005664
