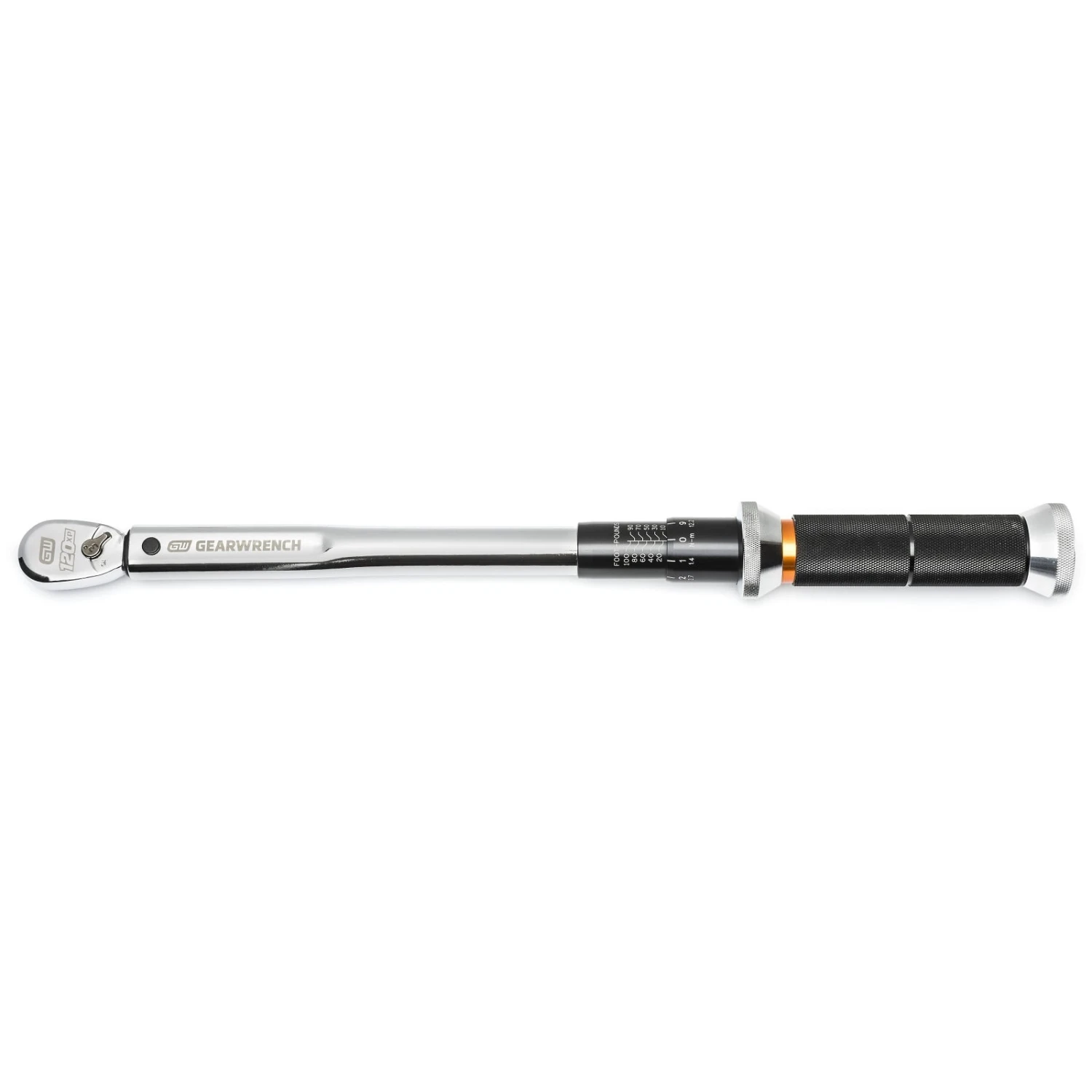

GEARWRENCH 85176 3/8″ Square Drive 120XP™ Micrometer Torque Wrench 13.55Nm – 135.5Nm (10-100Ft/Lbs)

Features:

• 120XP head provides a 3° ratcheting arc to turn fasteners in narrow spaces
• Torque accuracy of +/- 3% CW in the upper 80% of wrench capability delivers high performance
• Enclosed ratchet head design resists dirt infiltration for continuous and efficient execution
• Low profile tube, teardrop head, and flush mounted on/off switch allow better access in tight confines
• Scale markings are highly visible and easy to read
• Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
• 100% steel construction offers lasting strength and durability
• Meets or exceeds ASME B107.300 and exceeds ANSI specifications on load and cycle

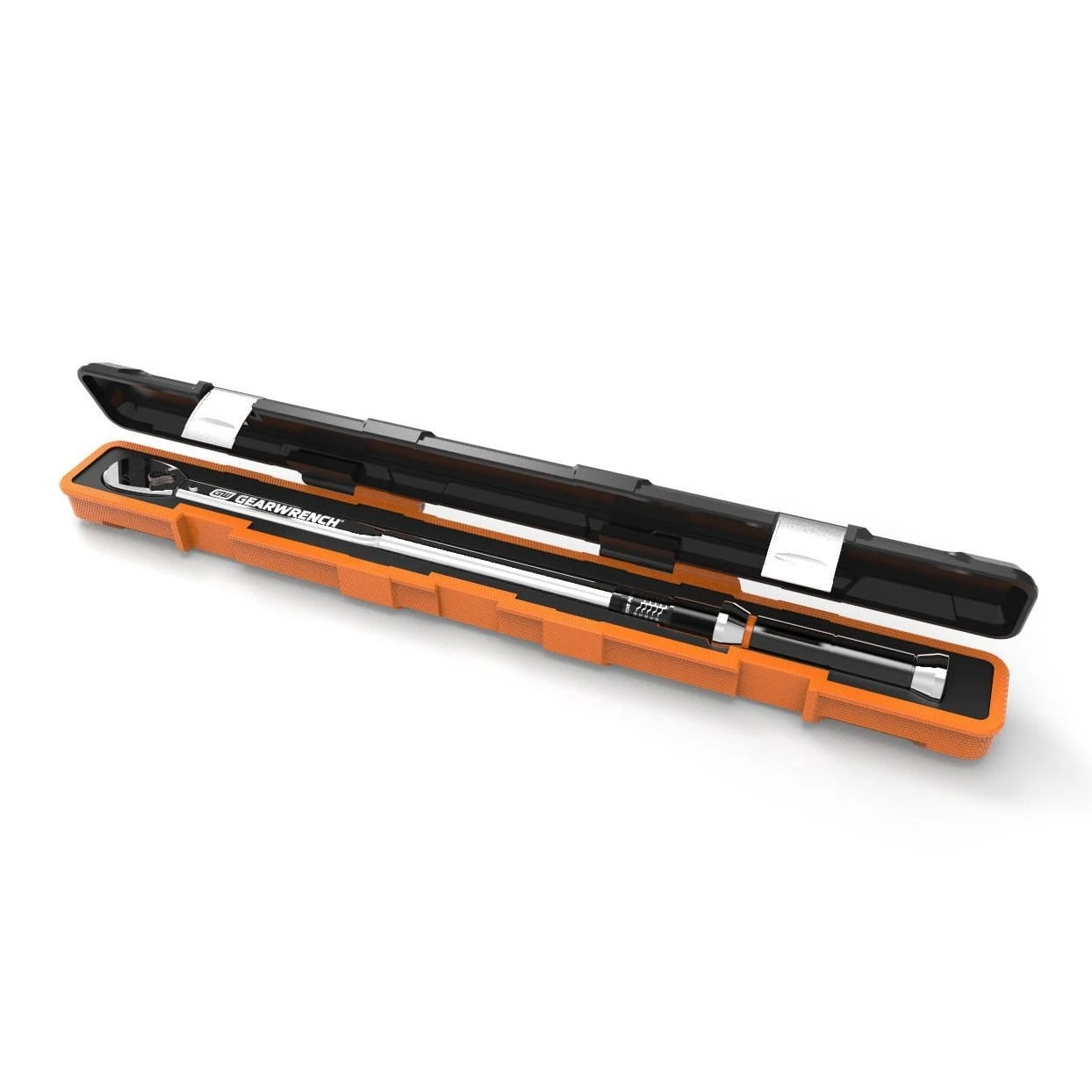

• Injection moulded case with removable lid and EVA foam insert for secure storage and convenience
• 1 year limited warranty; calibration accuracy warrantied for 90 days

Specifications:

• Overall Length 46.3cm / 18-1/4”
• Width 4.44cm / 1-3/4”
• ASME Specification B107.300
• Drive Type Square
• Drive Tang Size 3/8 in
• Tooth Count 120XP
• Head Thickness 1.39cm / 0.55”
• Head Width 3.17cm / 1-1/4”
• Finish Full Polish Chrome
• Min Torque (Primary Scale) 13.55Nm / 10 ft/lb
• Max Torque (Primary Scale) 135.5Nm / 100 ft/lb
• Alt Scale Increments 1.4 nm
• Primary Scale Increments 1 ft/lb
• Head Thickness Less Tang 1/2 in
• Torque Accuracy (20-100% of Full Range) +/-3% Clockwise
• Head Length 4.63cm / 1-13/16”
• Height 4.44cm / 1-3/4”
• Material Alloy Steel
• Set No

Includes:

• Storage Case
• Calibration Certificate

UPC:

• 099575851766
