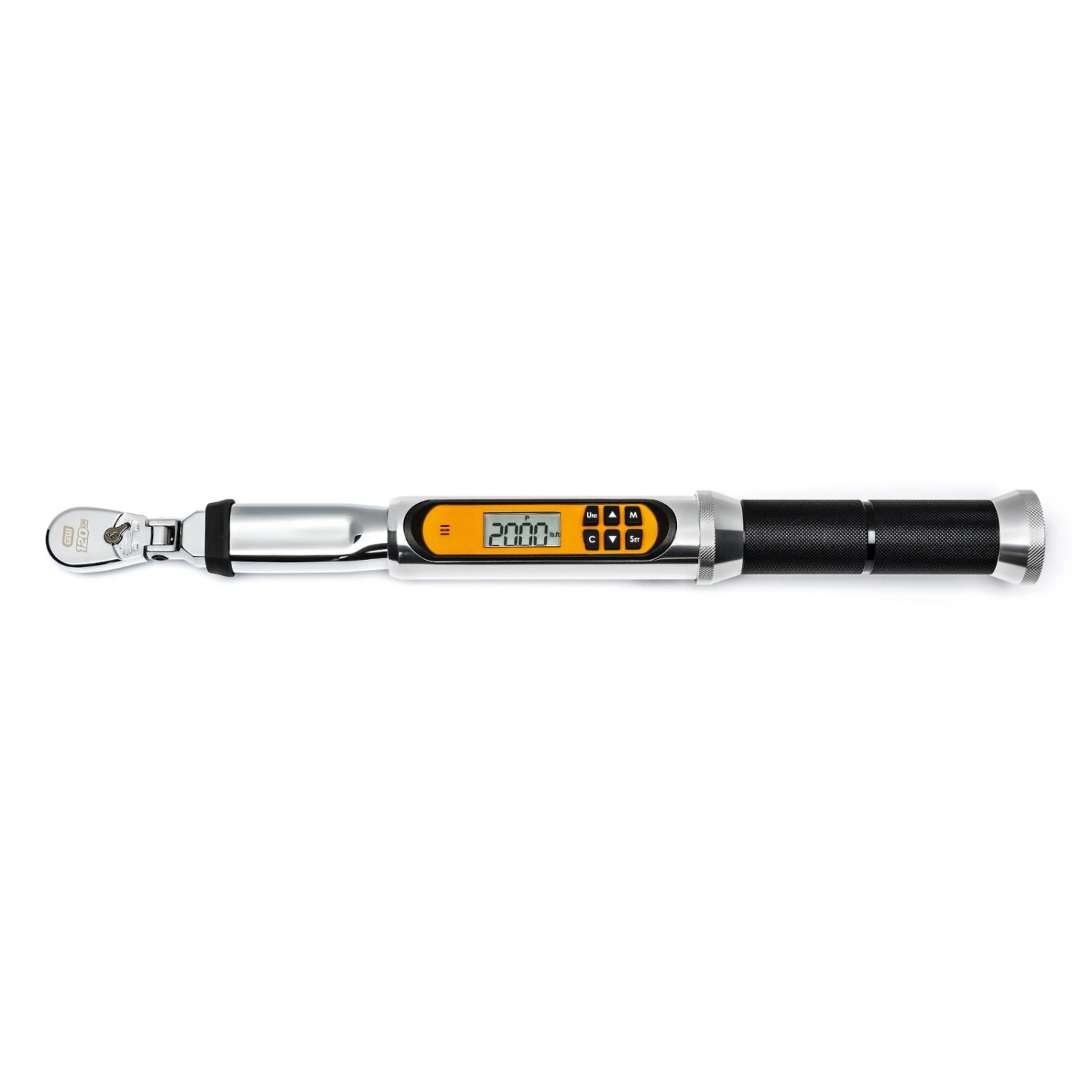

GEARWRENCH 85194 1/4″ Square Drive 120XP™ Flex Head Electroniac Digital Torque Wrench With Angle 2.7-27Nm / 2.0-20.0ft/lbs

Features:

• 120XP™ head provides a 3° ratcheting arc to turn fasteners in narrow spaces
• Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
• Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached
• 3 function modes feature peak torque, angle, and peak angle for additional versatility
• 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
• 10 available preset torque settings allow you to quickly access frequently repeated applications
• Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
• Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
• Meets or exceeds ASME standards and specifications
• 1 year limited warranty; calibration accuracy warrantied for 90 days

Specifications:

• Overall Length 15.59 in
• ASME Specification B107.10 B107.12 B107.28 B107.300
• Drive Type Square
• Drive Tang Size 1/4 in
• Knurled Yes
• Tooth Count 120XP™
• Head Thickness .75 in
• Head Width .98 in
• Finish Full Polish Chrome
• Min Torque (Primary Scale) 2 ft/lb
• Max Torque (Primary Scale) 20 ft/lb
• Alt Scale Increments .1 Nm
• Primary Scale Increments .1 ft/lb
• Min Torque (Alt Scale) 2.7 Nm
• Max Torque (Alt Scale) 27 Nm
• Head Thickness Less Tang .25 in
• Torque Accuracy (20-100% of Full Range) +/-2% Clockwise
• Head Length 1.5 in
• Material Alloy Steel

Includes:

• Calibration certificate
• Blow mould case

UPC:

• 099575851940
