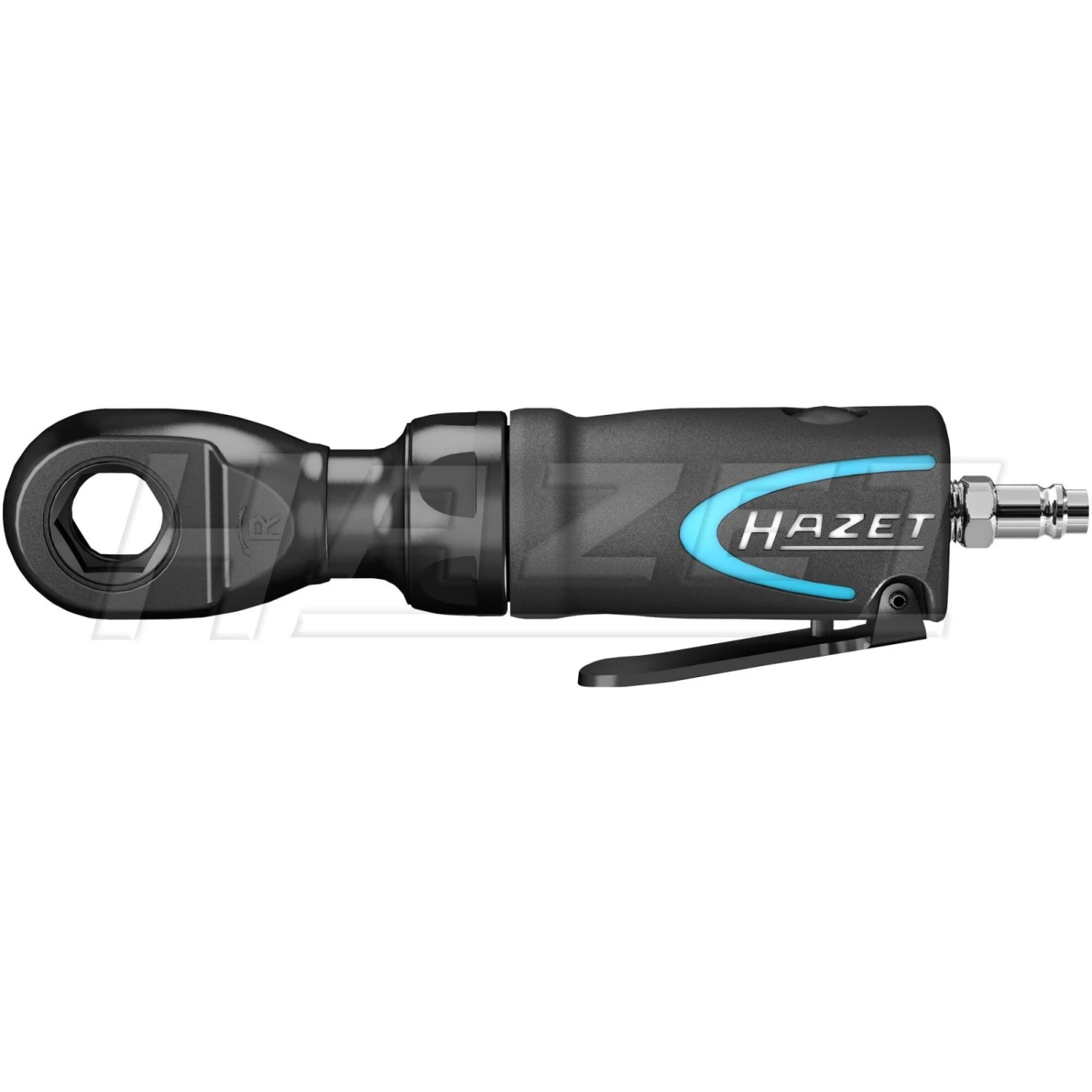

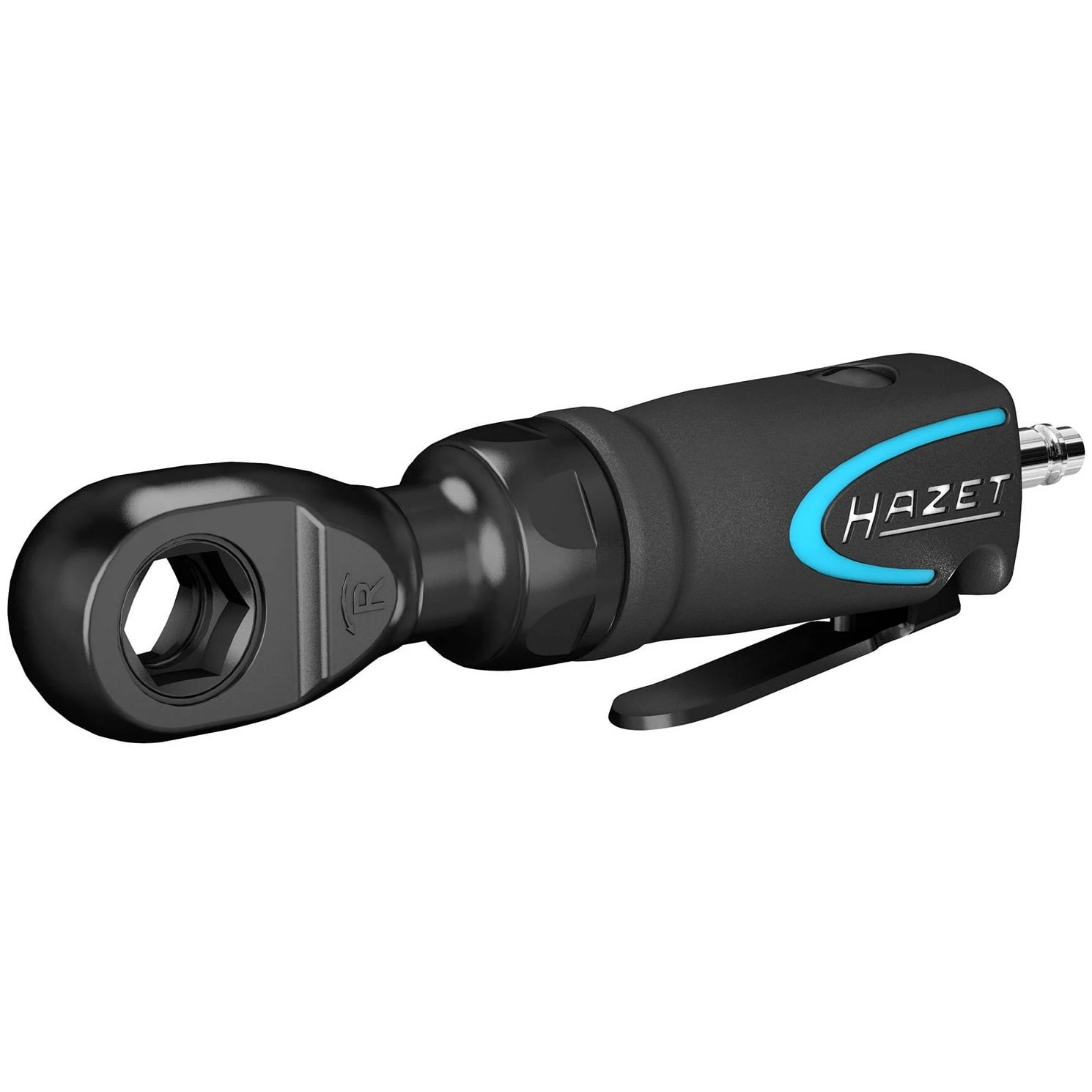

Hazet 9023M-1 4 Piece Mini 1/4″ & 3/8” Drive Multifunctional Air Pneumatic Ratchet With Interchangeable Heads

Features:

• Innovative 5-slat concept for even more power than conventional drives
• High reliability and continuous operation
• Extremely small and handy
• safety operating lever
• Number of tools: 4 in 1

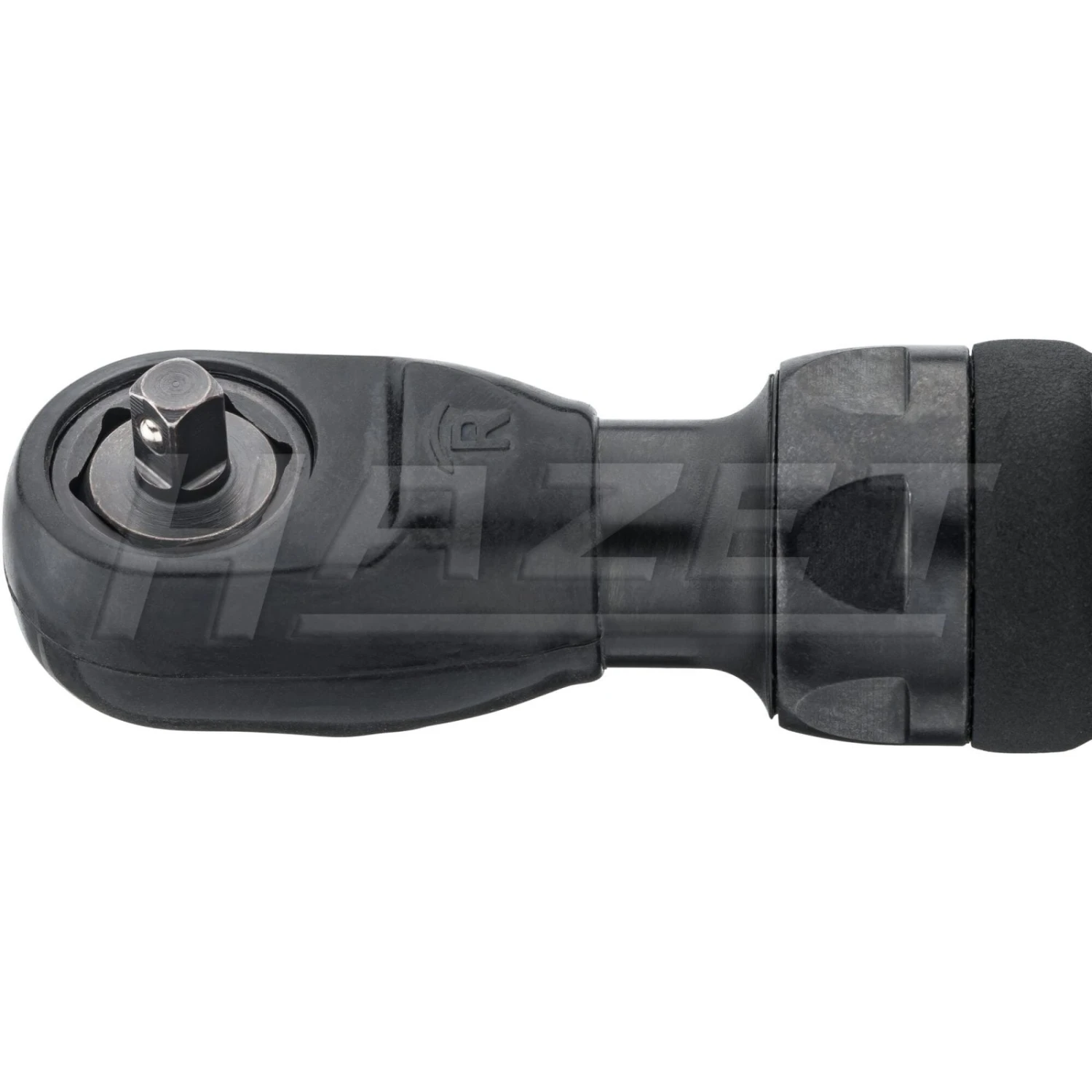

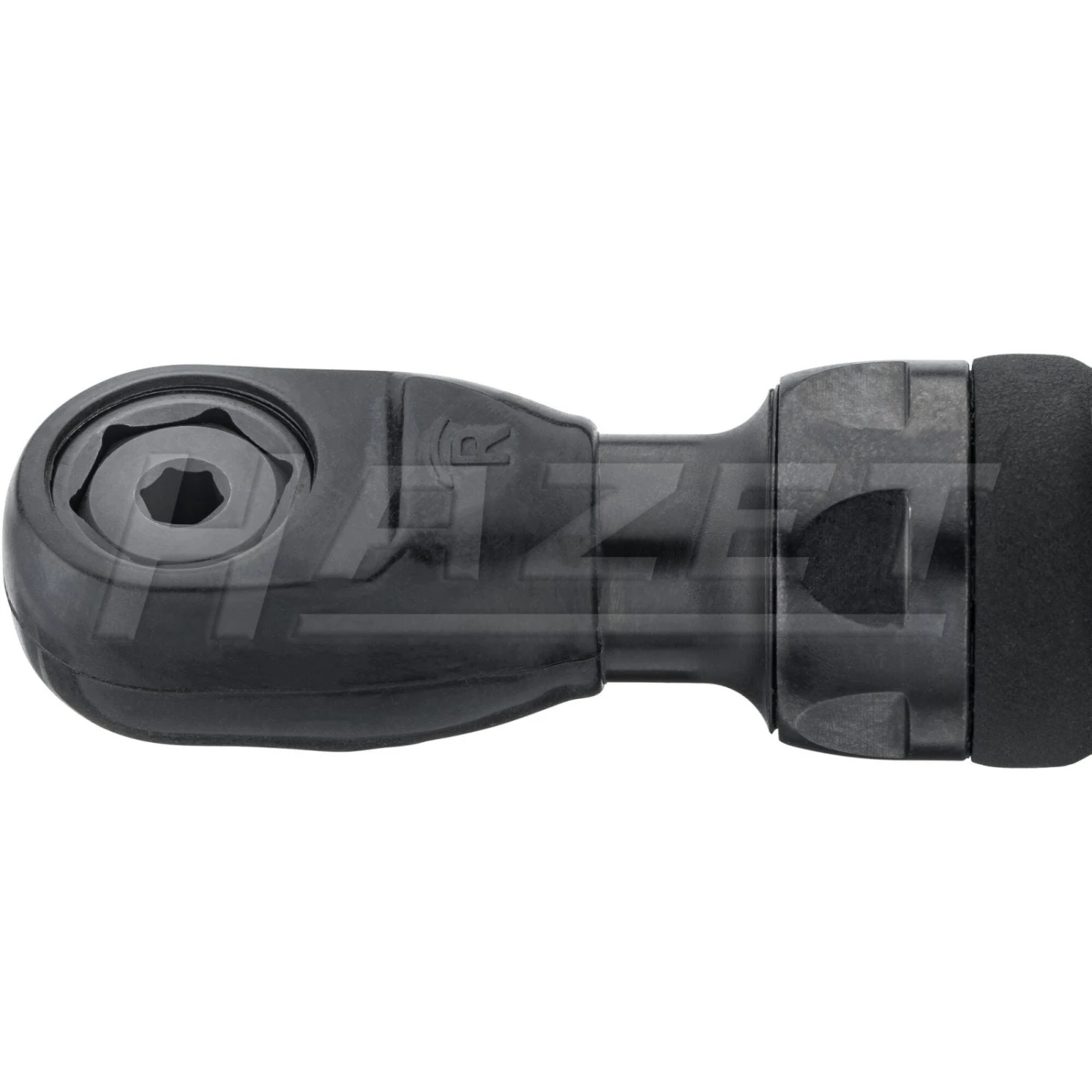

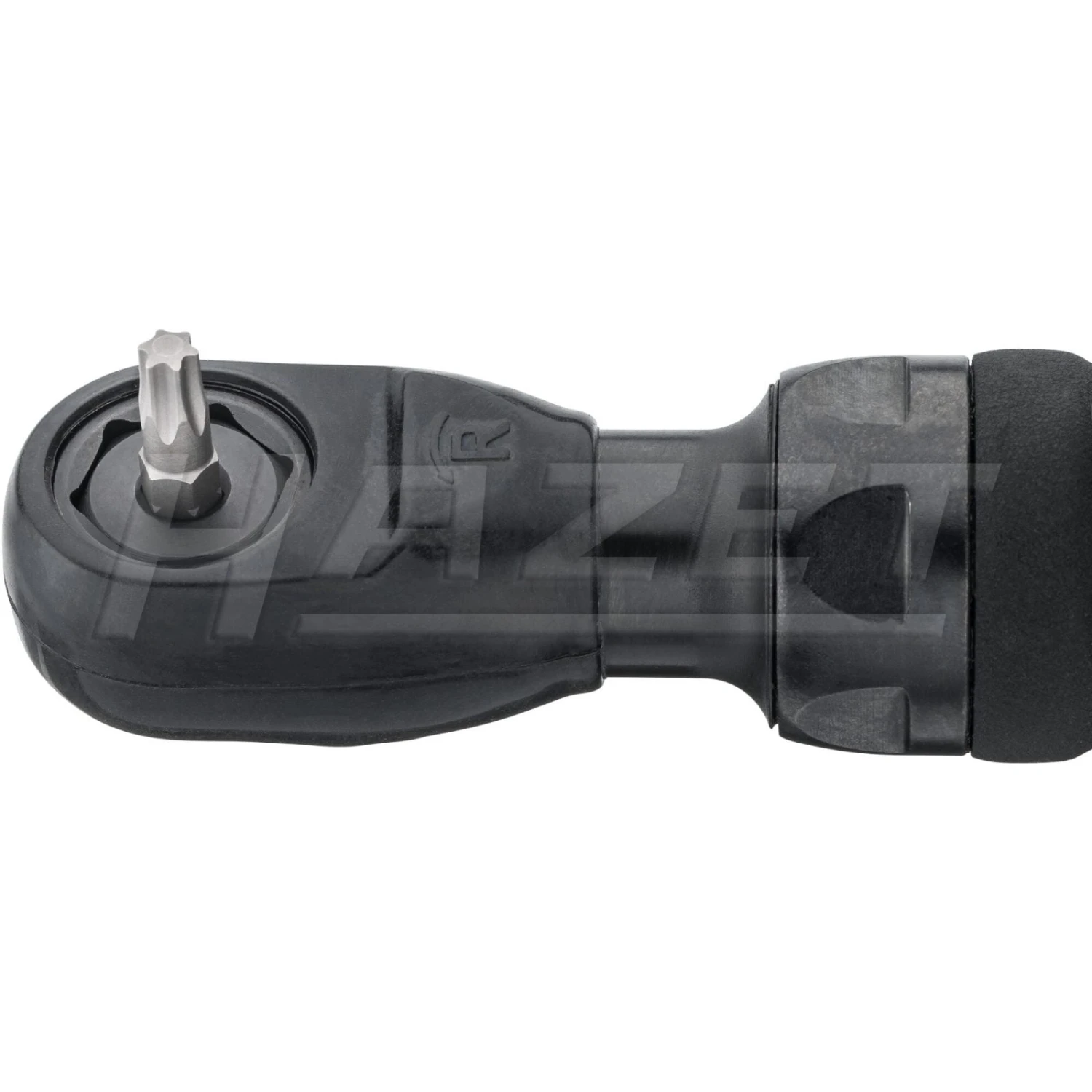

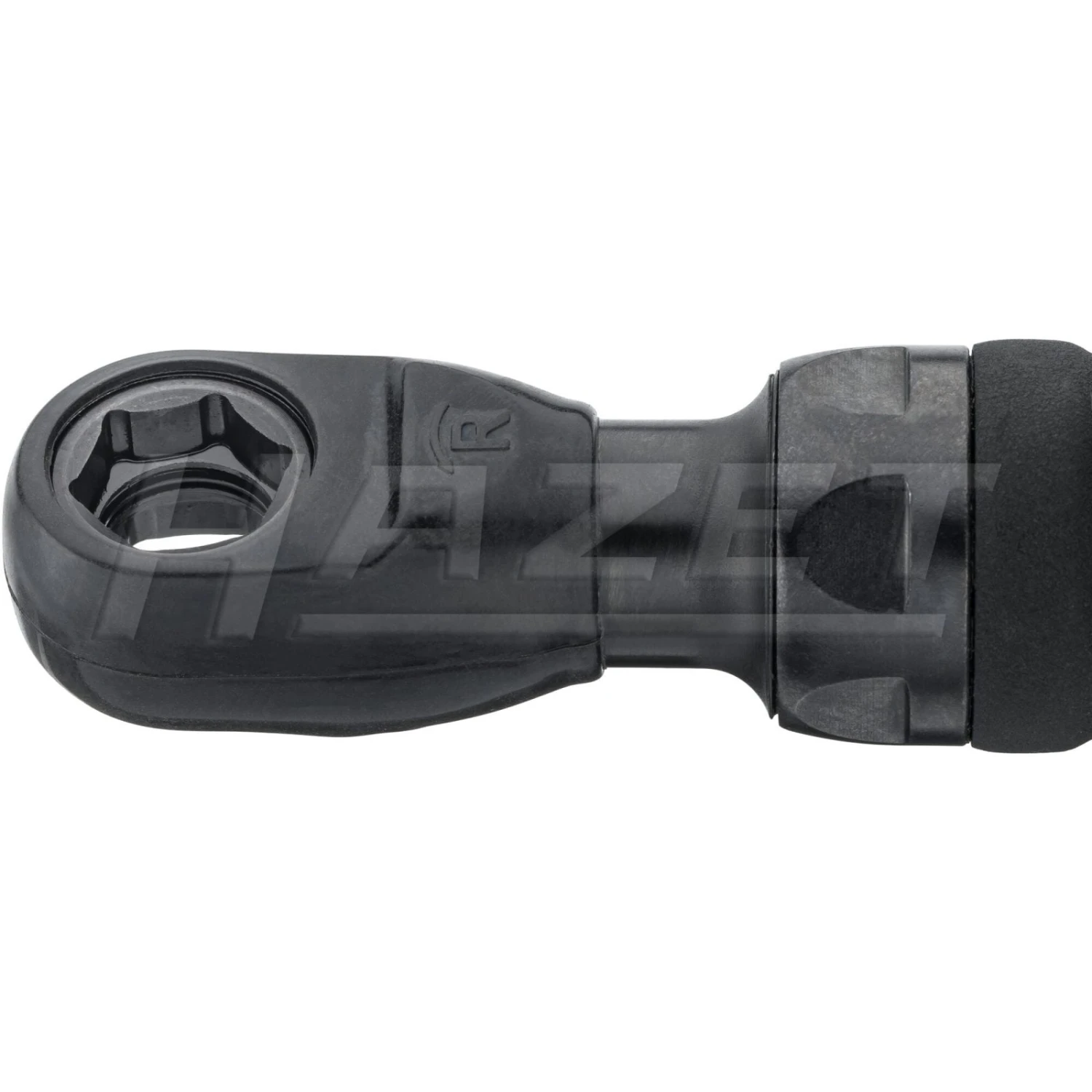

• Can be used for 1/4″ & 3/8” square drive & 1/4″ hex drive by replacing the ratchet heads
• Short design
• Reduced vibrations
• Exhaust air is guided through the handle
• For manual retightening with torque values 70 Nm
• Air connection inlet: Inside thread 12.91 mm (1/4″)
• Coupler plug: Nominal size 7.2 (included)
• Hose diameter (recommended): 10 mm
• Working pressure (bar): 6.3
• Sound power level: 93.8 db(A) Lp W
• Vibration acceleration: 3.20 m/s2
• Forward and reverse: single-stage (right/left)
• Cold insulated handle
• Output: Square, solid 6.3 mm (1/4 inch), Square, solid 10 mm (3/8 inch), Hexagon, hollow 6.3 (1/4 inch)

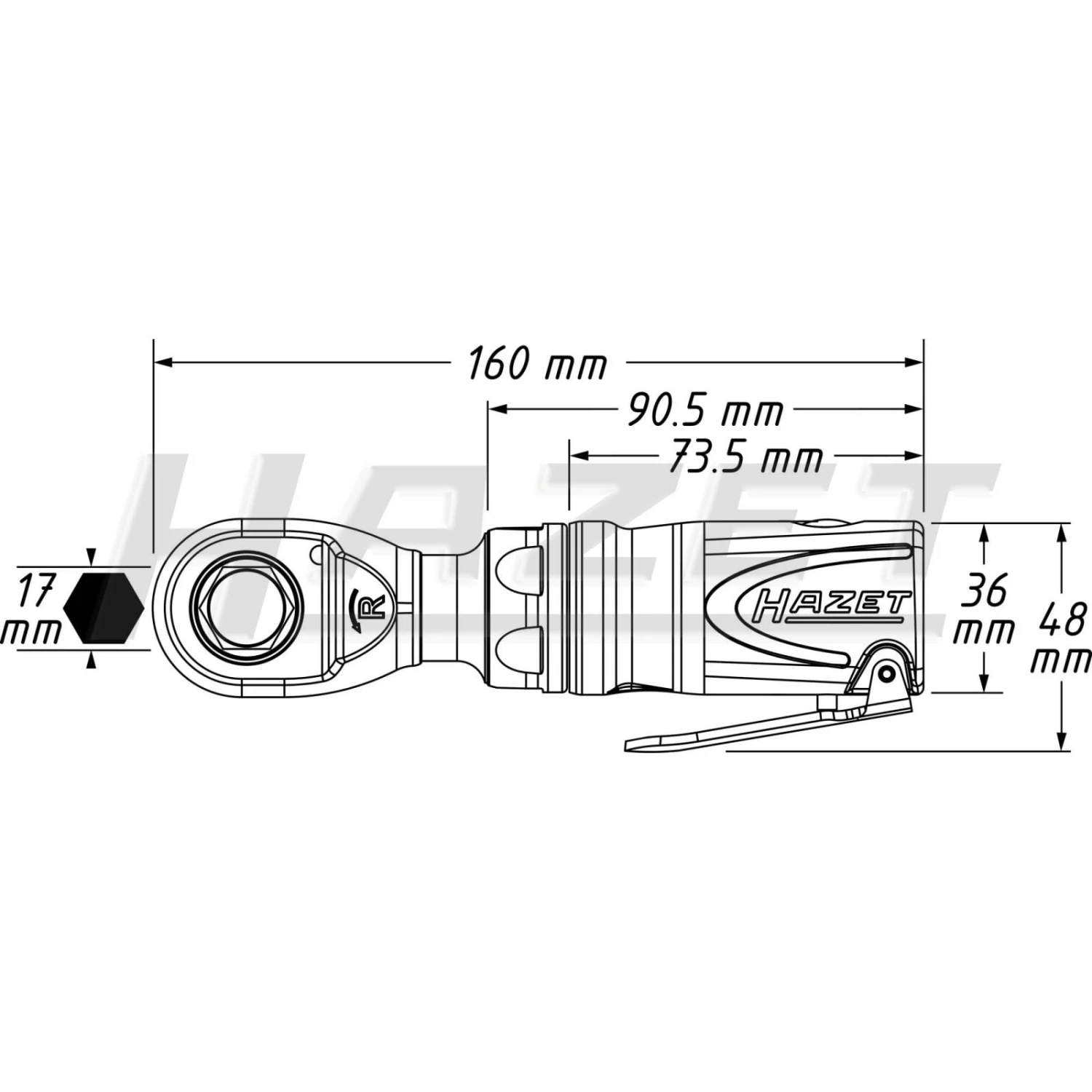

• Dimensions: 159 mm
• Net weight: 0.48 kg
• Tightening torque max.: 54 Nm
• Sound pressure level: 82.8 dB(A) Lp A
• Revolutions per minute: 400
• Air requirement: 84 l/min (1.4 l/sec)

Specifications:

• Air inlet thread : Inside thread 12.91 mm (1/4″)
• Air requirement l/min : 84 l/min
• Coupler plug : Nominal size 7.2 (included)
• Forward/reverse : single-stage (right/left)
• Handle : Cold insulated handle
• Hose diameter (recommended) : 10 mm
• Length : 159 mm
• Net weight : 0.48 kg
• Number of tools : 4
• Output : i 6,3 = 1/4″, Square, solid 10 mm (3/8 inch), h 6,3 = 1/4″
• Revolutions per minute : 400
• Sound power level : 93.8 db(A) Lp W
• Sound pressure level : 82.8 dB(A) Lp A
• Tightening torque max. : 54 Nm
• Total length : 159 mm
• Vibration acceleration : 3.2 m/s2
• Working pressure (bar) : 6.3 bar

Contents:

• Push-through ratchet
• Square socket 6.3 mm (1⁄4 inch)
• Square socket 10 mm (3⁄8 inch)
• Hexagon bit 6.3 mm (1⁄4 inch)

UPC:

• 4000896227112
