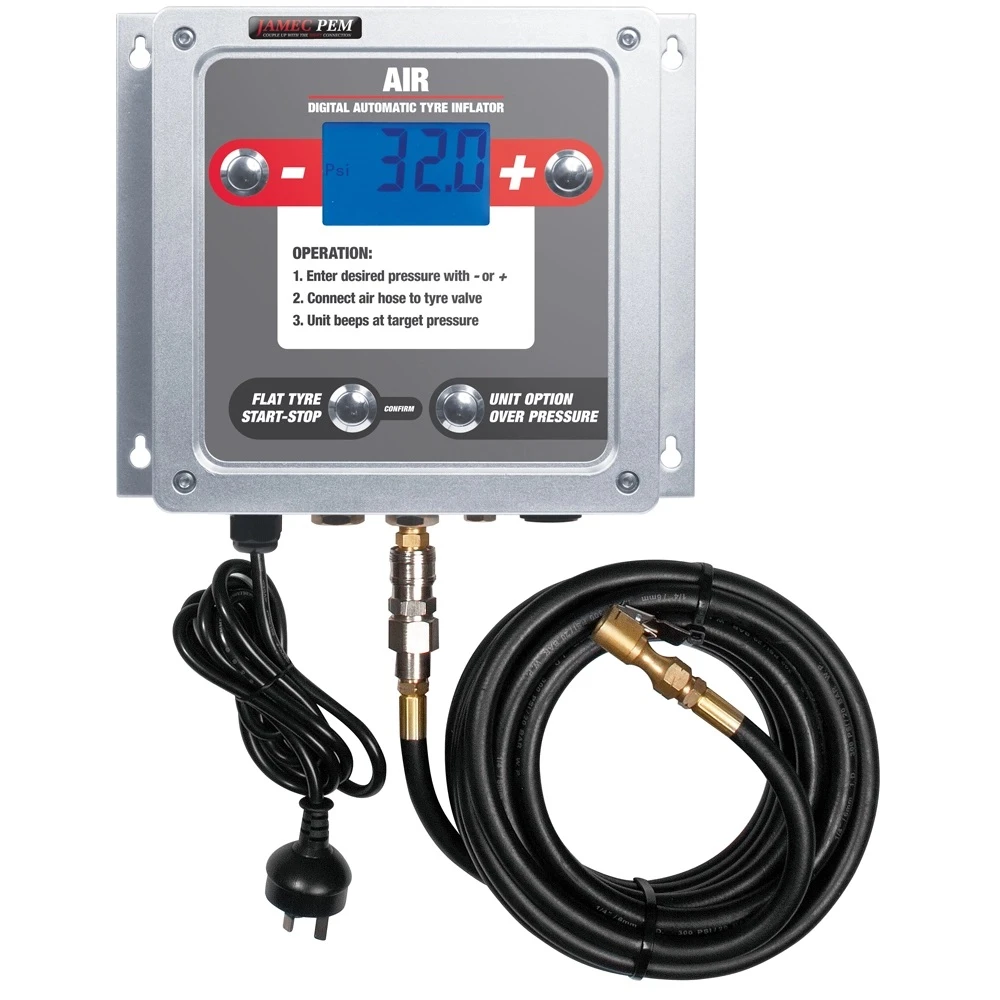

Jamec Pem 11.0545 Digital Automatic Tyre Inflator

Features:

• This robust die cast aluminium housed digital auto inflator is simple to use with plug and play design, all the customer needs to do it pre-set the required pressure, place the chuck on the tyre valve and the built-in auto start inflates/deflates the tyre to the specified pressure. This inflator has three functions:
• 1. Standard inflate/deflate (auto)
• 2. Over pressure for tyre shops; where new tyres are fitting and you need to ensure that the tyre inflates to a pressure where the tyre seats properly on the rim then deflates automatically to the required pre-set pressure
• 3. Flat tyre; where there is no residual tyre pressure in the tyre the inflator does not automatically start so a manual override is required to fill flat tyres
• Built tough to last this unit is IP56 rated so it can withstand the elements inside and out, it has mechanical anti-vandal buttons and a loud audible warning that can be heard in the noisiest areas when the correct tyre pressure has been reached
• Aluminium die cast housing
• Supplied with calibration certificate, accuracy exceeds EC Directive 86/217
• Includes Nitto equivalent adaptor
• Ideal for forecourts, industrial, mechanical workshops, tyre store
• Mechanical anti-vandal buttons
• IP56 rated for indoor and outdoor use
• Large backlit LCD display with audible warning
• Comprehensive diagnostics and error reporting
• Inflates accurately with hoses up to 50 m long

Specifications:

• Reader unit: Digital display, audible warning
• Chuck type: Clip on
• Chuck style: Single straight
• Scale: 1200 kPa, 174 p.s.i., 12 bar, 0-12 kg/cm²
• Inlet size: 1/4 ” BSP female
• Hose length: 7.5m
• Dimensions: 230 L x 278 W x 85 H mm
• Weight: 5.5kg
• Accuracy: ± 0.3 p.s.i. @ 25-75 p.s.i.
• Operation: Auto inflate, deflate
• Supply pressure max: 182 p.s.i.
• Advised application: Forecourt, industrial, workshops
• Supply voltage: 240 V AC (50-60 Hz)
• Wattage: 12 W max
• Working temperature: -10 +50º C
• Humidity range: Up to 95% RH non condensing
• Inflation flow: 3000 L/min @ 182 p.s.i.
