Description:
- The Klein Tools TI250 is an easy-to-use, USB rechargeable Thermal Imager. The large LCD displays unseen hot and cold spots for instant troubleshooting. Excellent resolution with over 10,000 pixels and your choice of three colour palettes. The meter provides high and low temperature points, crosshairs to pinpoint specific temperatures, and options for temperature alarms. The addition of an optional microSD® Card (sold separately) allows the meter to capture and store images for reporting
Features:

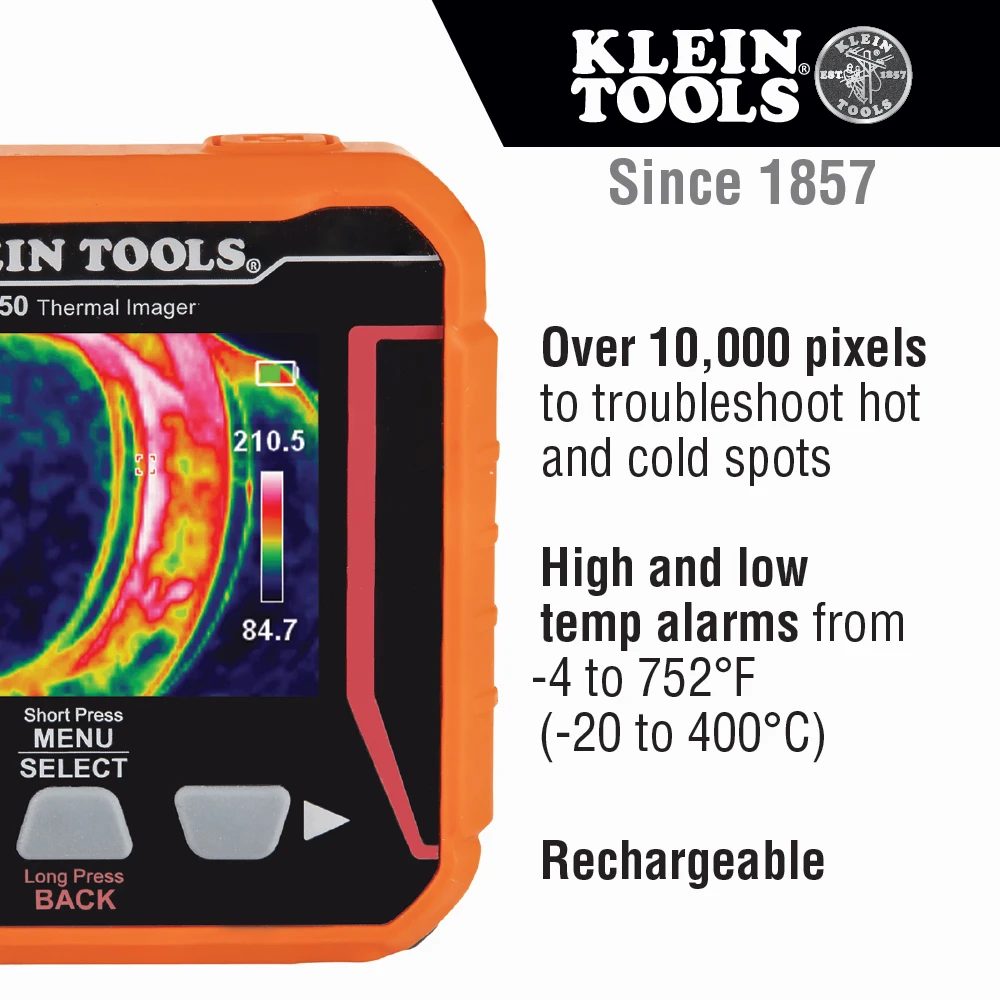

- Thermal Imager has over 10,000 pixels to troubleshoot hot and cold spots
- Adjustable emissivity from 0.01 to 1.00
- Store and share images with optional microSD® Card (sold separately)
- User selectable high and low temperature alarms from -4° F to 752° F (-20° C to 400° C)
- Select colour palettes to best capture the event
- Rechargeable lithium-ion battery
- Includes thermal imager, micro-USB charging cable, carrying case and instructions
Specifications:
- Type: Thermal Imager
- Application: View Hot and Cold Spots for Instant Troubleshooting
- Special Features: High and Low Temperature Points, Crosshairs to Pinpoint Specific Temperatures, Options for Temperature Alarms, 3 Colour Pallets
- Display: 2.4” (6.1 cm) TFT LCD
- Display Resolution: 320 x 240 Pixels
- Sensor Type: VOx Microbolometer
- Sensor Resolution: 10,800 Pixels
- Thermal Sensitivity: <60 mK
- Spectral Range: 8 to 14 μm
- Temperature Range: -4° to 752°F (-20° to 400°C)
- Accuracy: At More Than 212°F (100°C): +/- 2° or 2% (whichever is Greater); At Less Than 212°F (100°C): +/- 3° or 3% (whichever is Greater)
- Field of View: 50° +/-3°
- Laser Sighting: No
- Emissivity: 0.01 to 1.00, Adjustable
- Colour Palettes: Ironbow, Rainbow and Greyscale
- Photo Capture: Yes
- Maximum Frames per Second: <9 Hz
- Memory: MicroSD® Card (not included)
- Batteries: Lithium-Ion
- Overall Length: 3.1” (8.0 cm)
- Overall Width: 1” (2.5 cm)
- Overall Height: 3.1” (8.0 cm)
- Material: ABS/PC, Electronic Components
- Standards: CE and UKCA
- Weight: 8.5 oz (241 g)
Includes:
- Rechargeable Thermal Imager, Micro-USB Charging Cable, Carrying Case and Instructions
UPC:
- 092644692932
