KLEIN Tools A-VDV501-853 Scout™ Pro 3 Tester With Test + Map™ Remote Kit

Description:

• The Scout™ Pro 3 Tester with Test + Map Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map remotes No. 2 – No. 6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light

Features:

• Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections

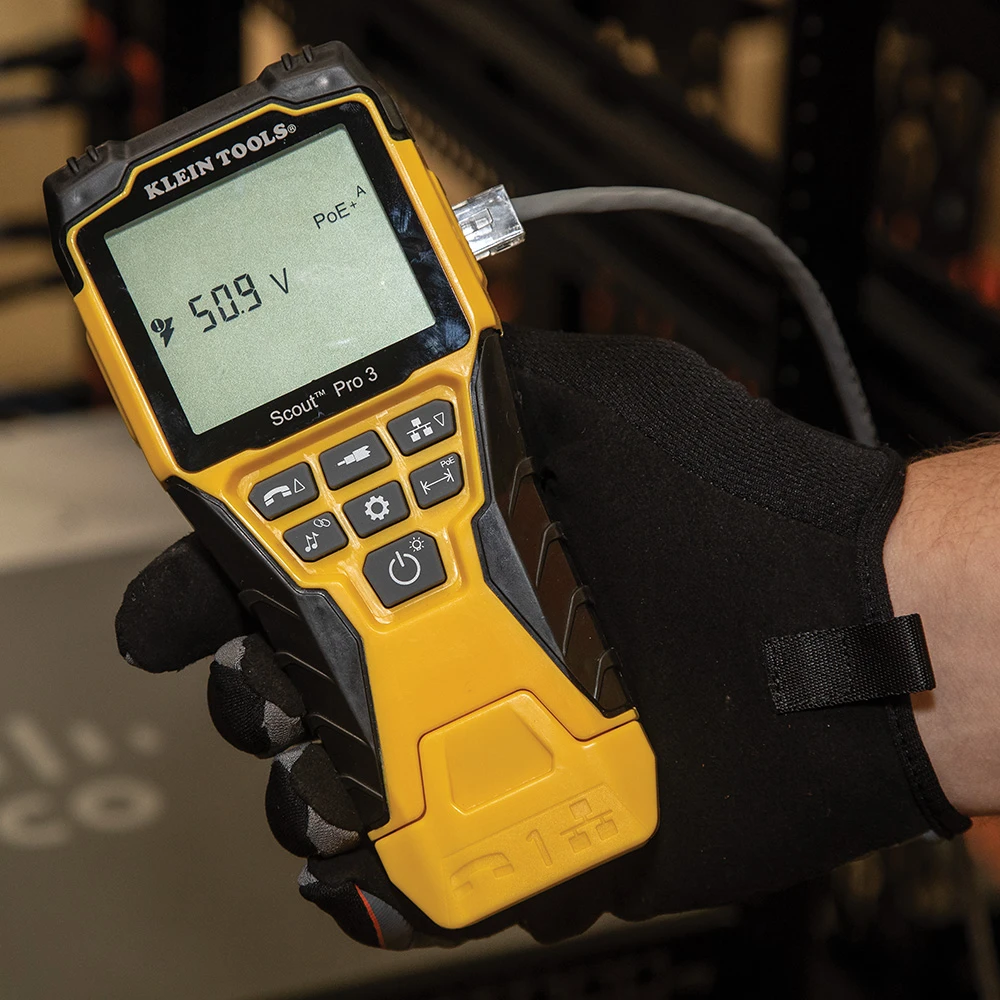

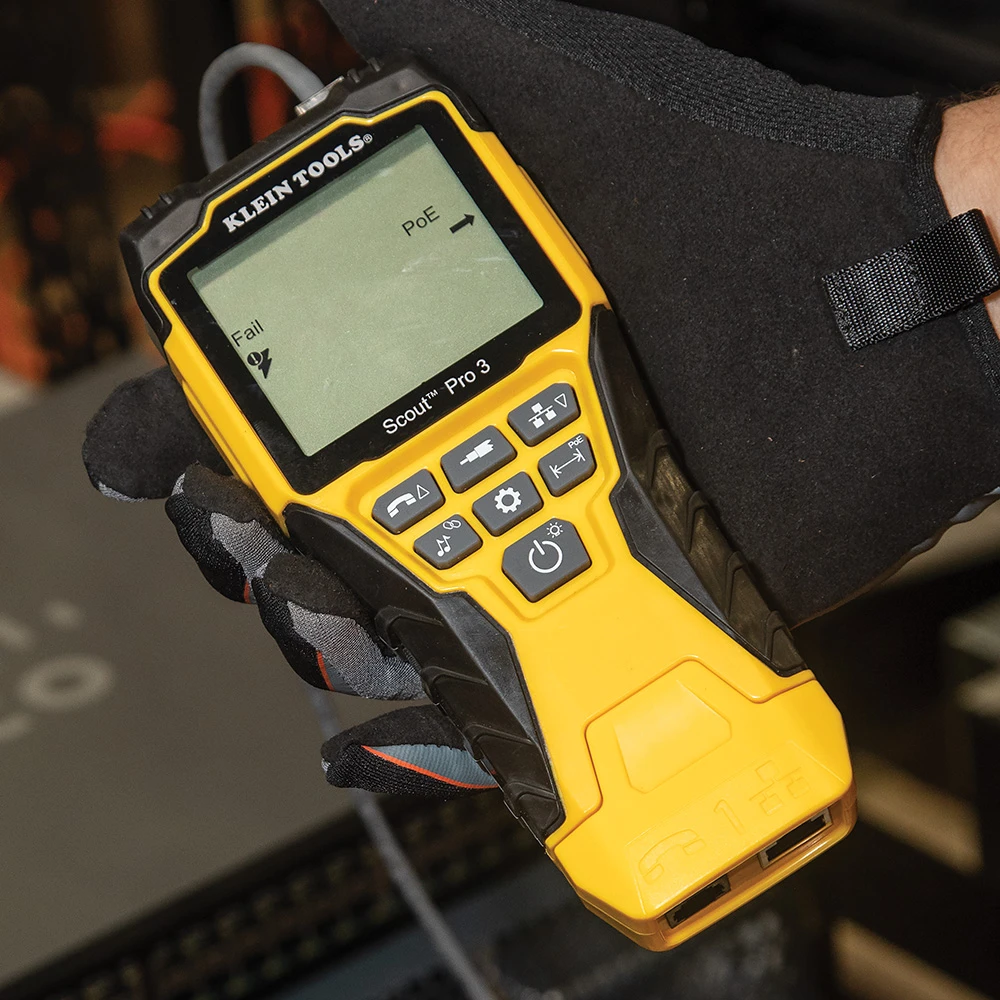

• Detect, identify and test Power over Ethernet (PoE)

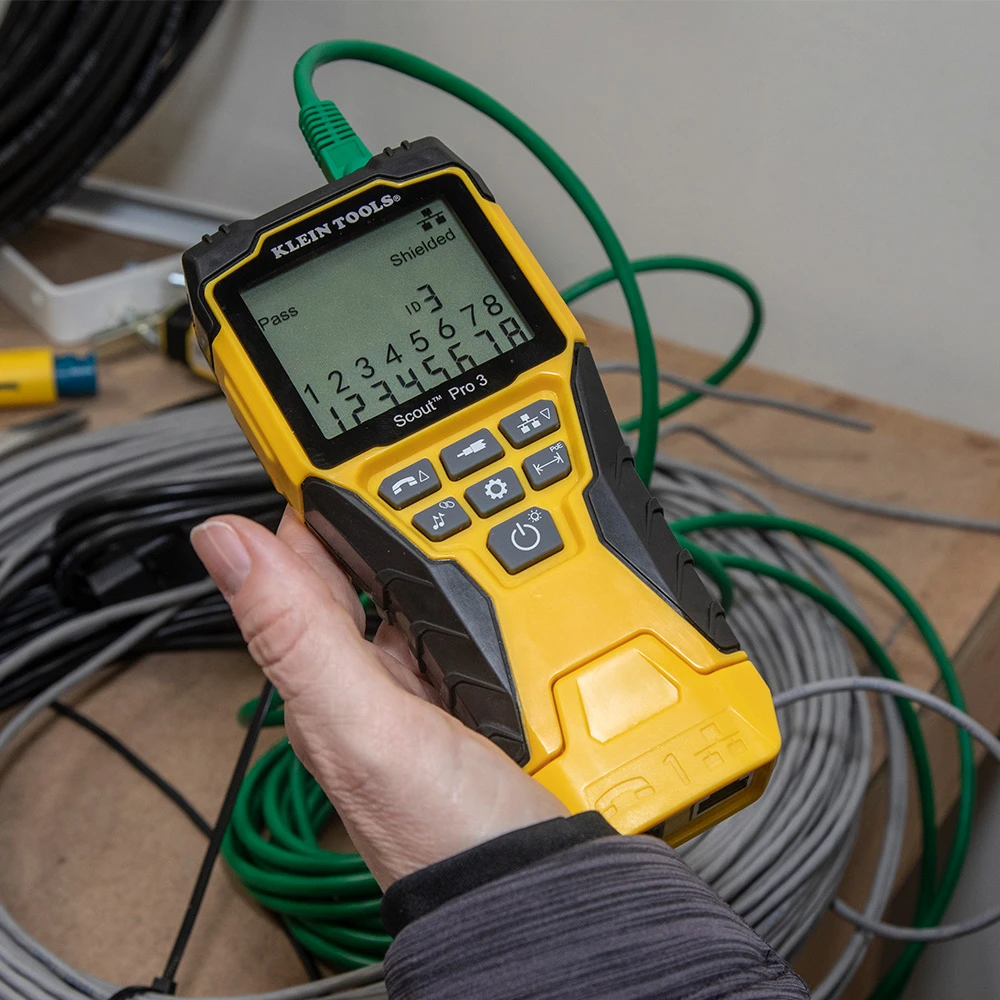

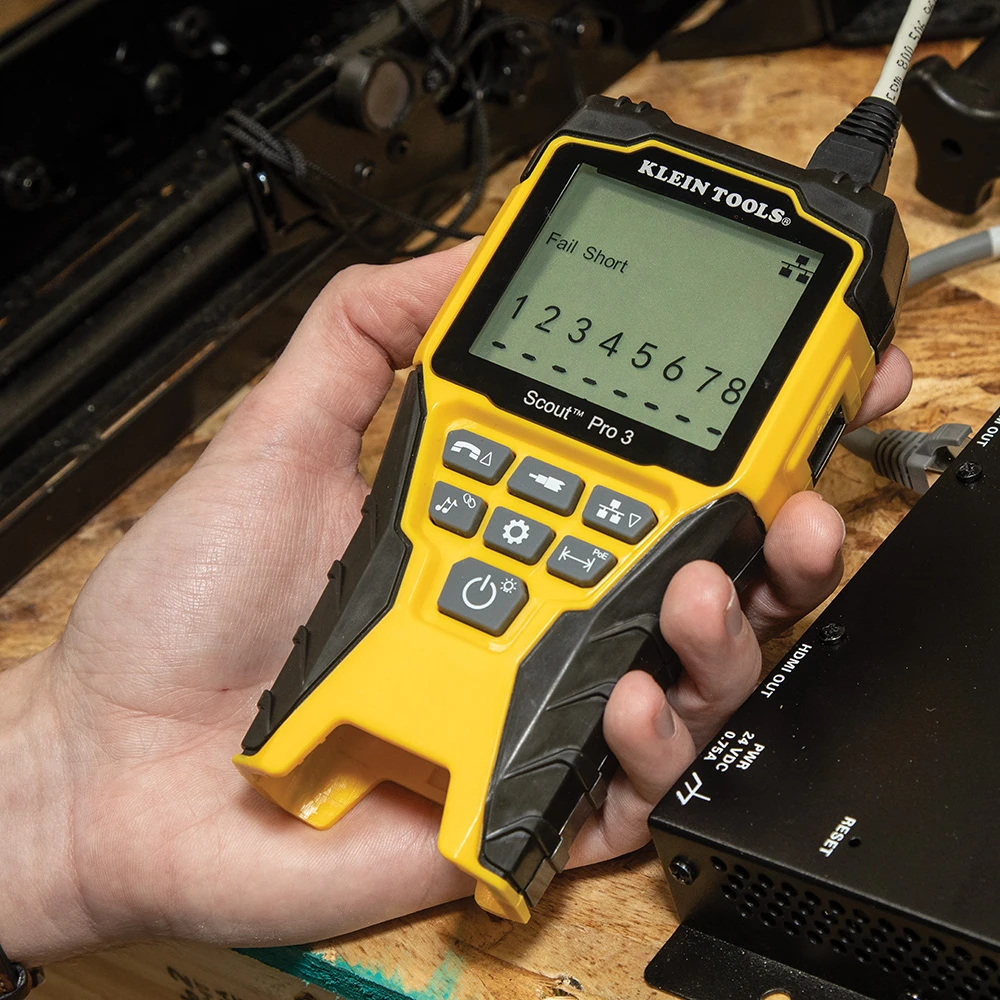

• Wiremap testing, as well as testing for Miswires, Split Pairs, Short Faults, Open Faults and Shields

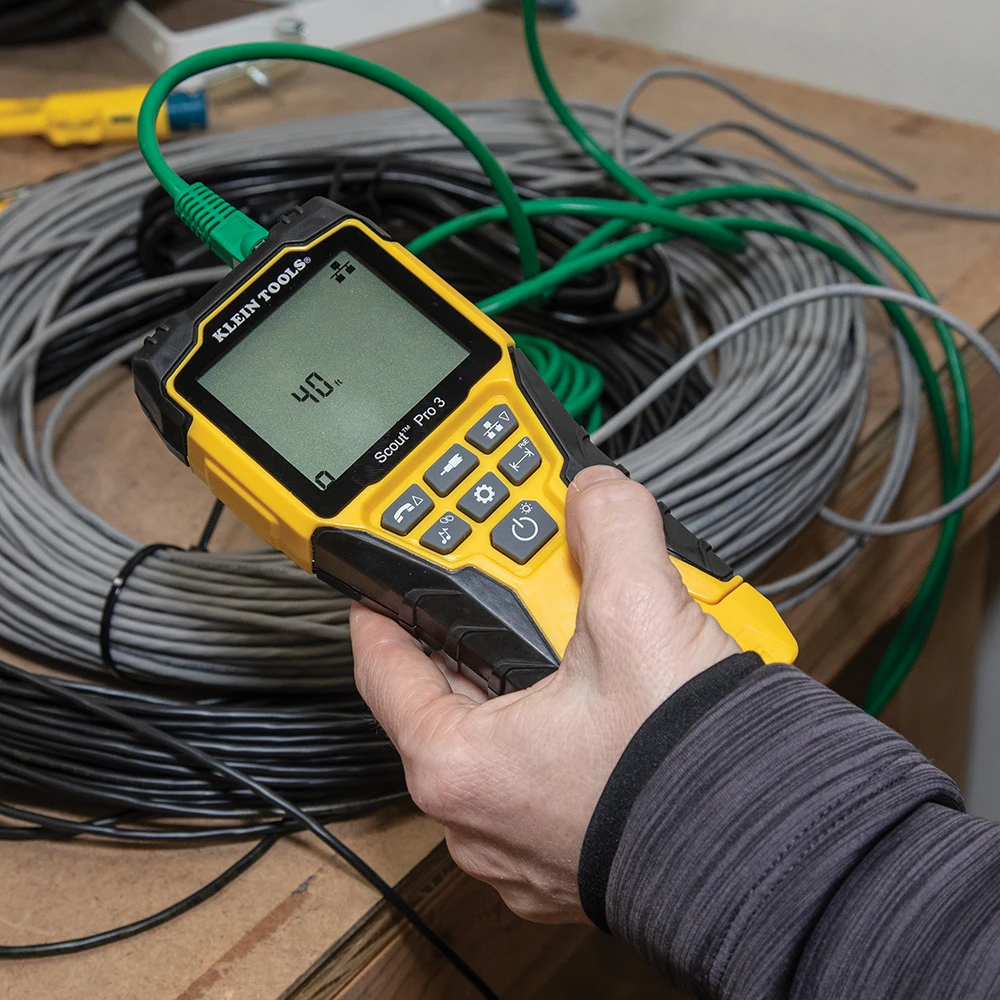

• Measures cable length of up to 2000′
• Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analogue probe Cat. No. VDV500-123; sold separately)
• Includes 1 self-storing Test+Map remote (#1), 5 Test+Map remotes (#2-6), 7 female-to-female, 7 male-to-female coax barrel adapters, 7 RJ45 jumper cables (6-Inch), 2 RJ11 and 2 RJ12 jumper cables (6-inch)
• Includes a 9 V battery and convenient carrying case

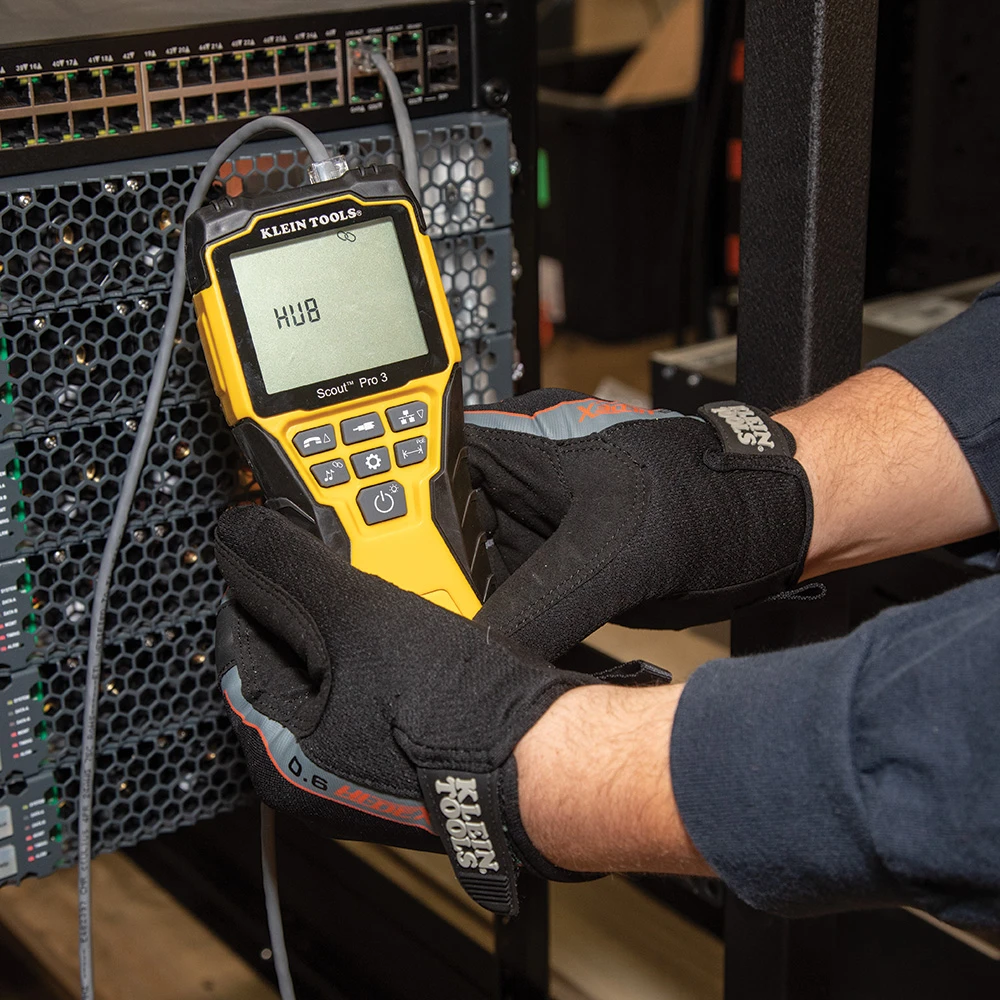

• Hub blink mode to identify port location on a hub or a switch
• 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 7 male-to-female coax adapters
• Backlit LCD screen displays cable length, wiremap, cable ID and test results

Specifications:

• Type: Twisted Pair, DATA, Voice, LAN and Coaxial
• Application: Cable Testing
• Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
• Cable type: DATA: Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7, COAXIAL: RG59, RG6/6Q
• Overall Length: 7” (17.8 cm)
• Overall Height: 3.2” (8 cm)
• Overall Width: 1.5” (3.8 cm)
• Material: Plastic and Metal
• Test-n-Map ID Remotes: (1) Self-Storing, (5) Test + Map Remotes (No. 2 – No. 6)
• Batteries: 9V Alkaline
• Battery Life: Active: 50 hrs
• Drop Protection: 2 m
• Supported Remotes: 18
• Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
• Display: Backlit LCD
• Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
• Faults detected: Open, Short, Mis-wire
• Testing & Measurement Types: Ethernet, Data, Coaxial
• Accuracy: Length Measurement: +/-5% (ft) or 5% m
• Standard: CE
• Weight: 1.2 lb (0.5 kg)

Included:

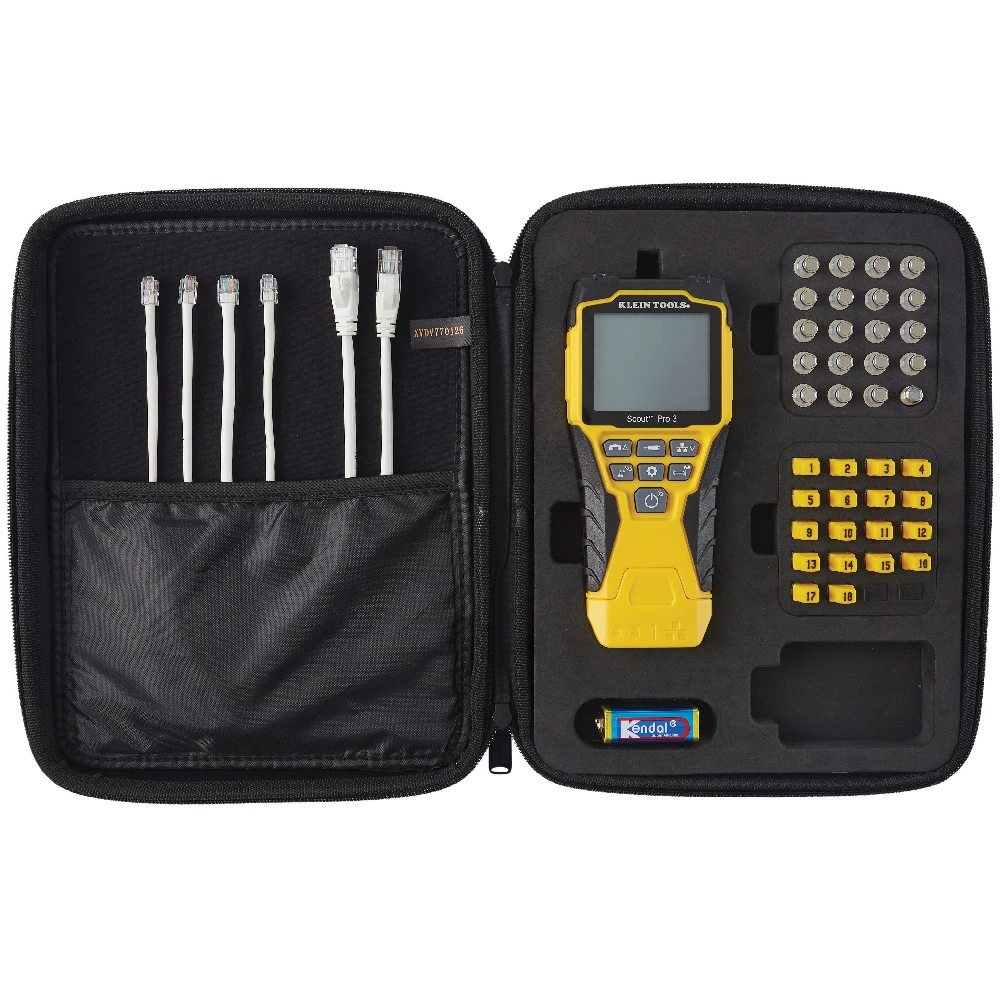

• Tester, Self-storing Test + Map Remote (No. 1), 5 – Test + Map Remotes (No. 2 – No. 6), 7 – Coaxial Barrel Adapters (female-to-female), 7 – Coaxial Barrel Adapters (male-to-female), 7 – RJ45 Jumper, 2 – RJ11 Jumper, 2 – RJ12 Jumper, Carrying Case, 9V Alkaline Battery

UPC:

• 092644583346
