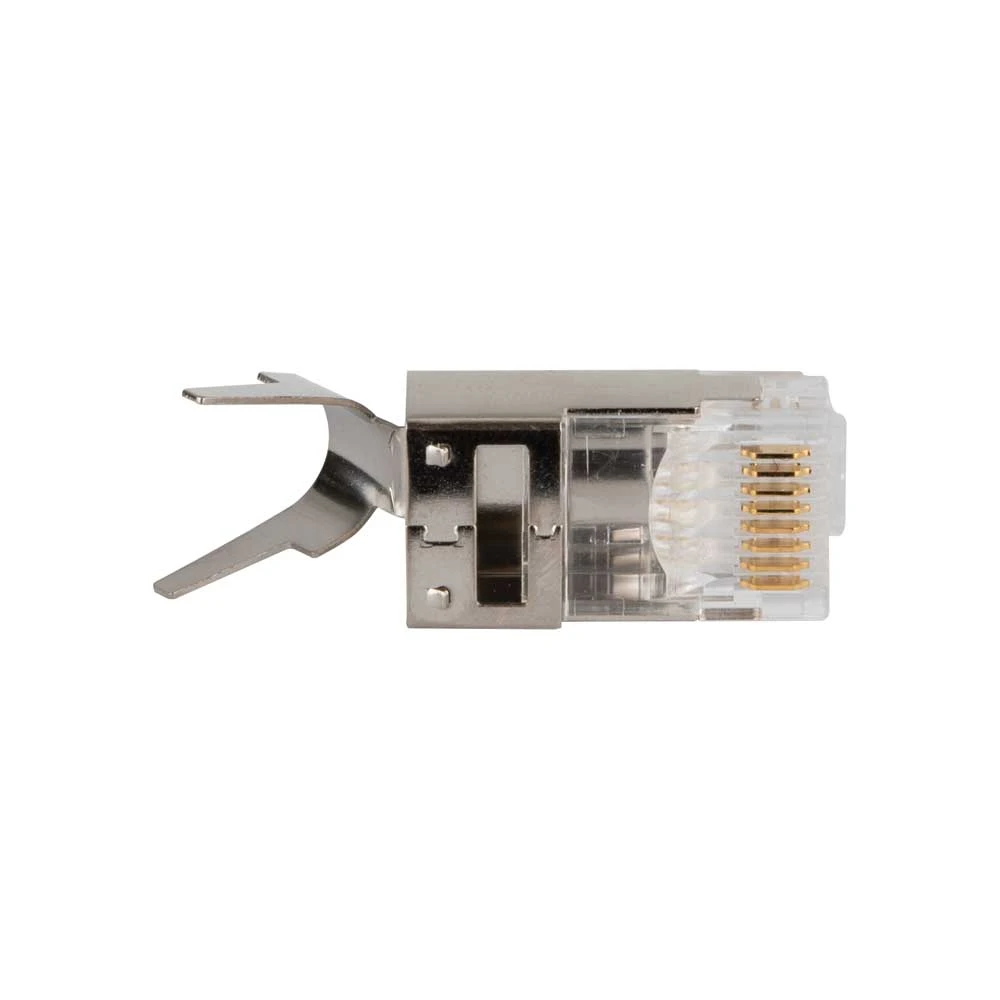

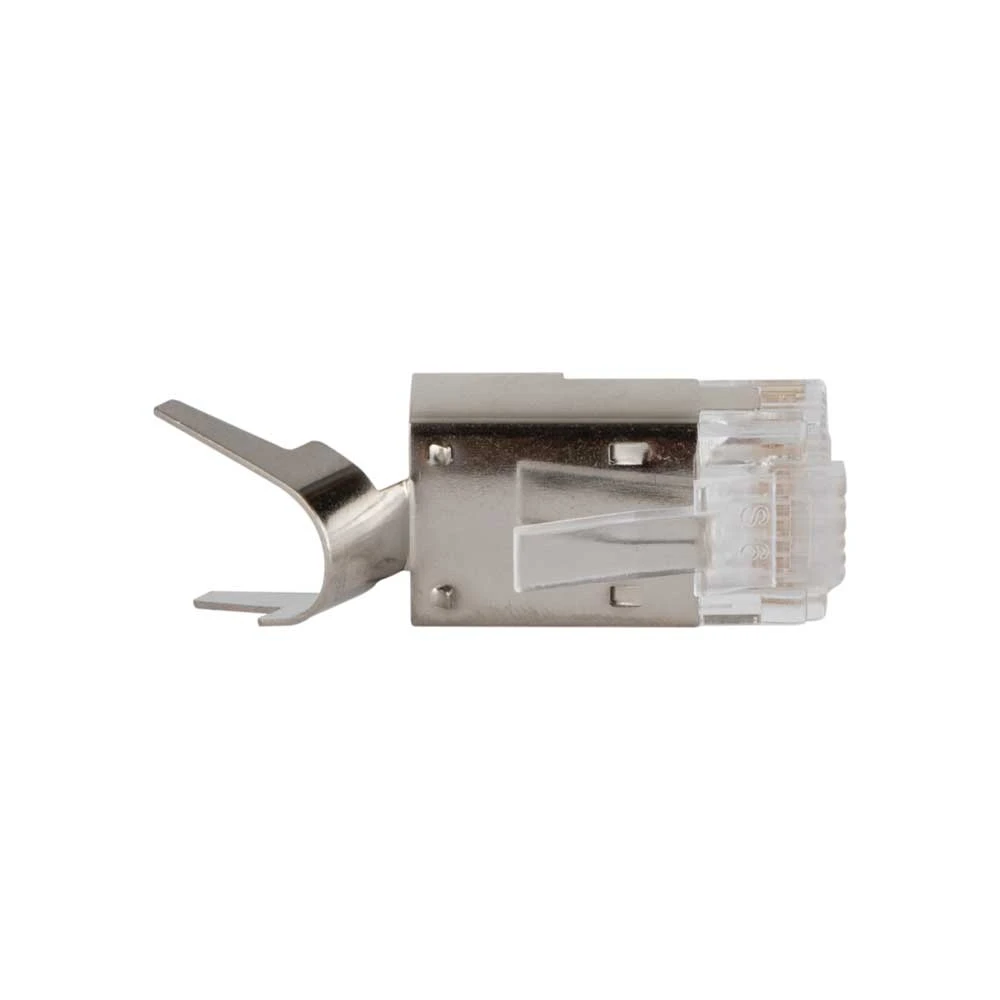

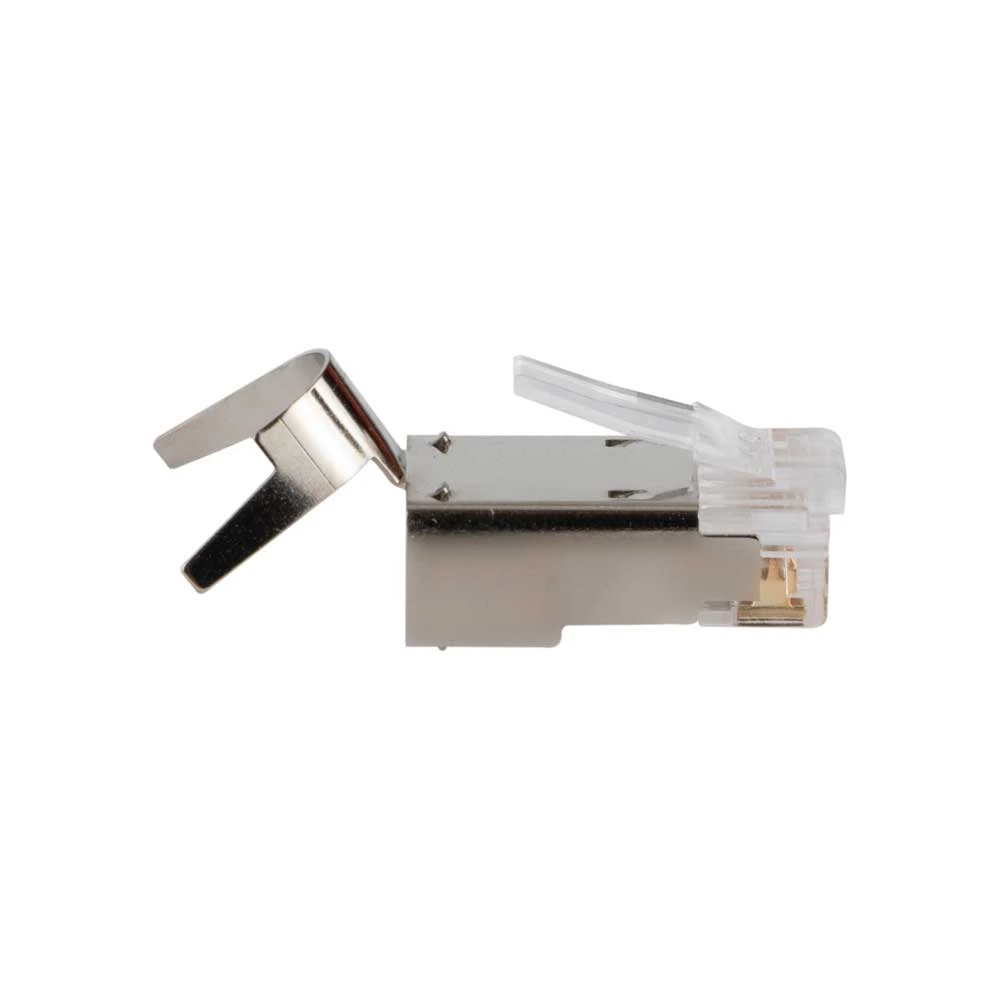

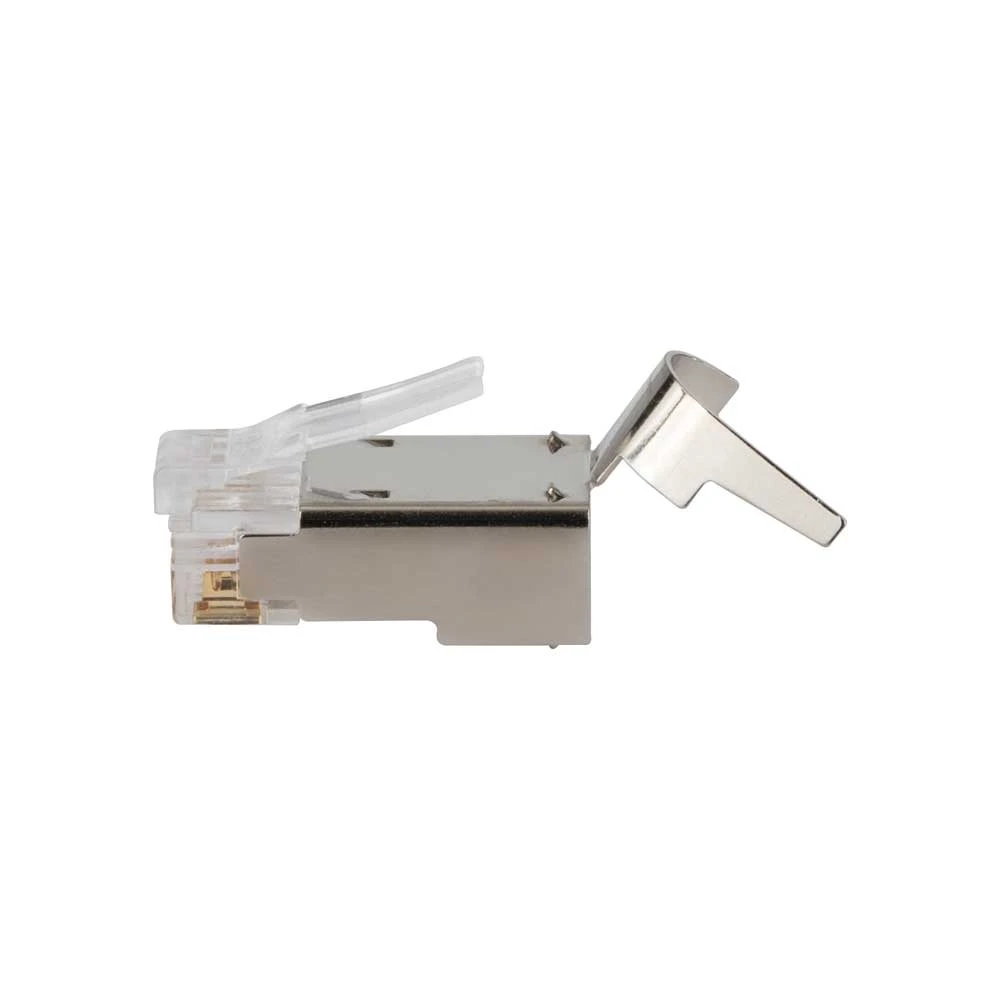

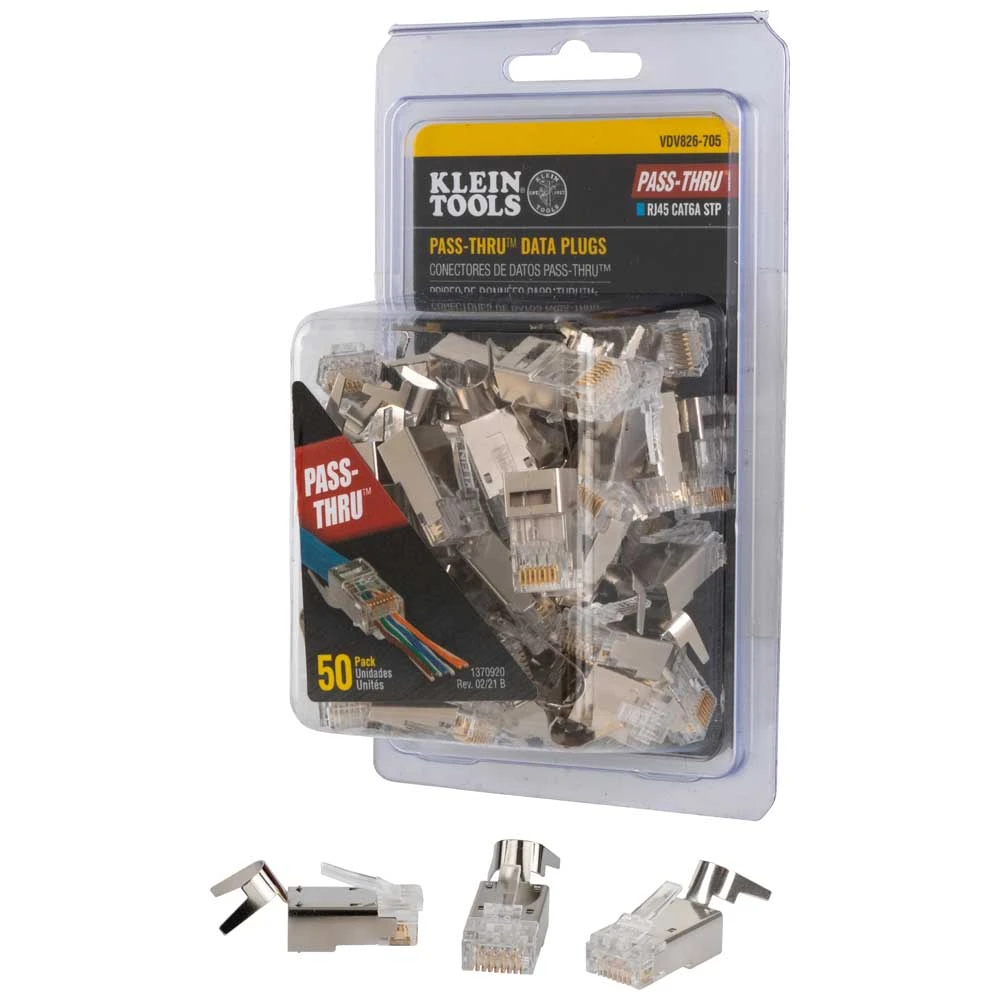

KLEIN Tools A-VDV826-705 Pass-Thru™ Modular Data Plug, RJ45-CAT6A, Shielded (STP), 50-Pack

Description:

• Exclusive Klein-designed CAT6A Pass-Thru™ modular plugs for fast, reliable connector installations for data applications. CAT6A shielded cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with the Klein Tools Pass-Thru™ Modular Crimper Cat. No. VDV226-110 and eliminates wasted materials

Features:

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• For CAT6A cable as well as larger diameter/thicker jacket CAT6 cable

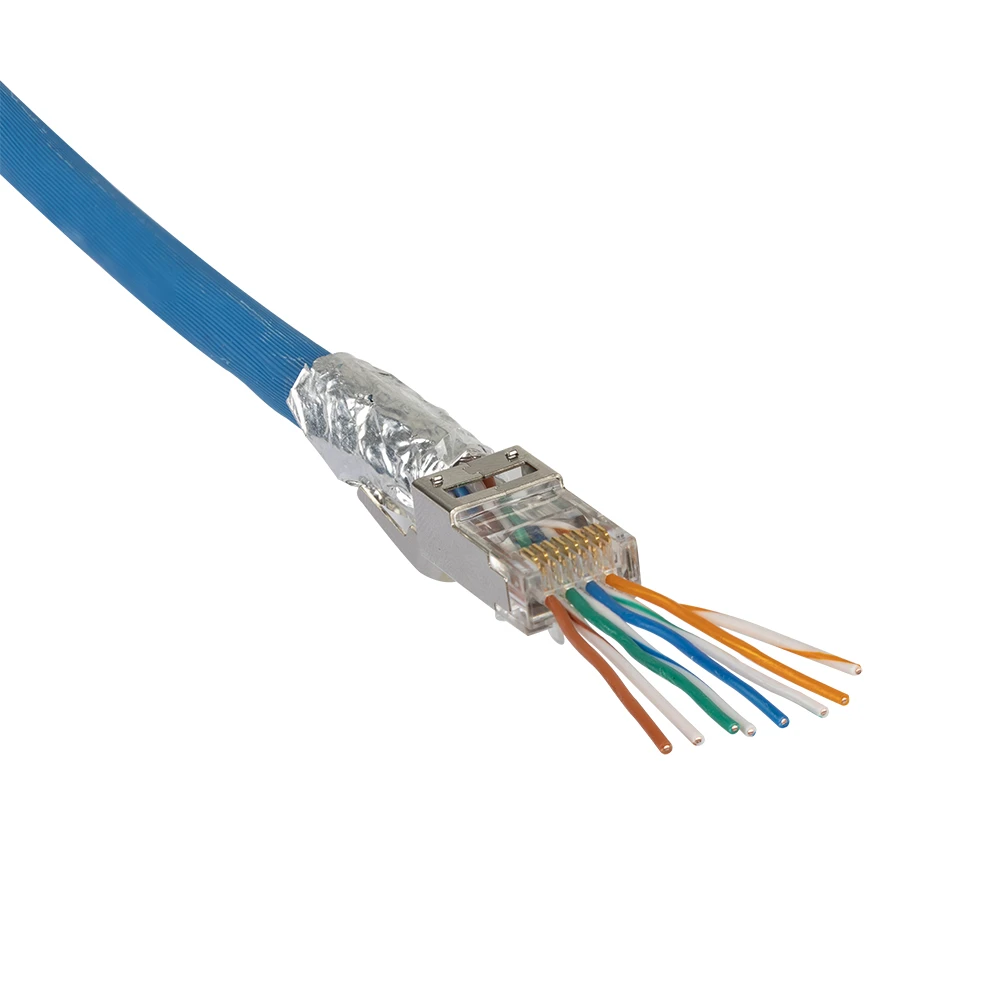

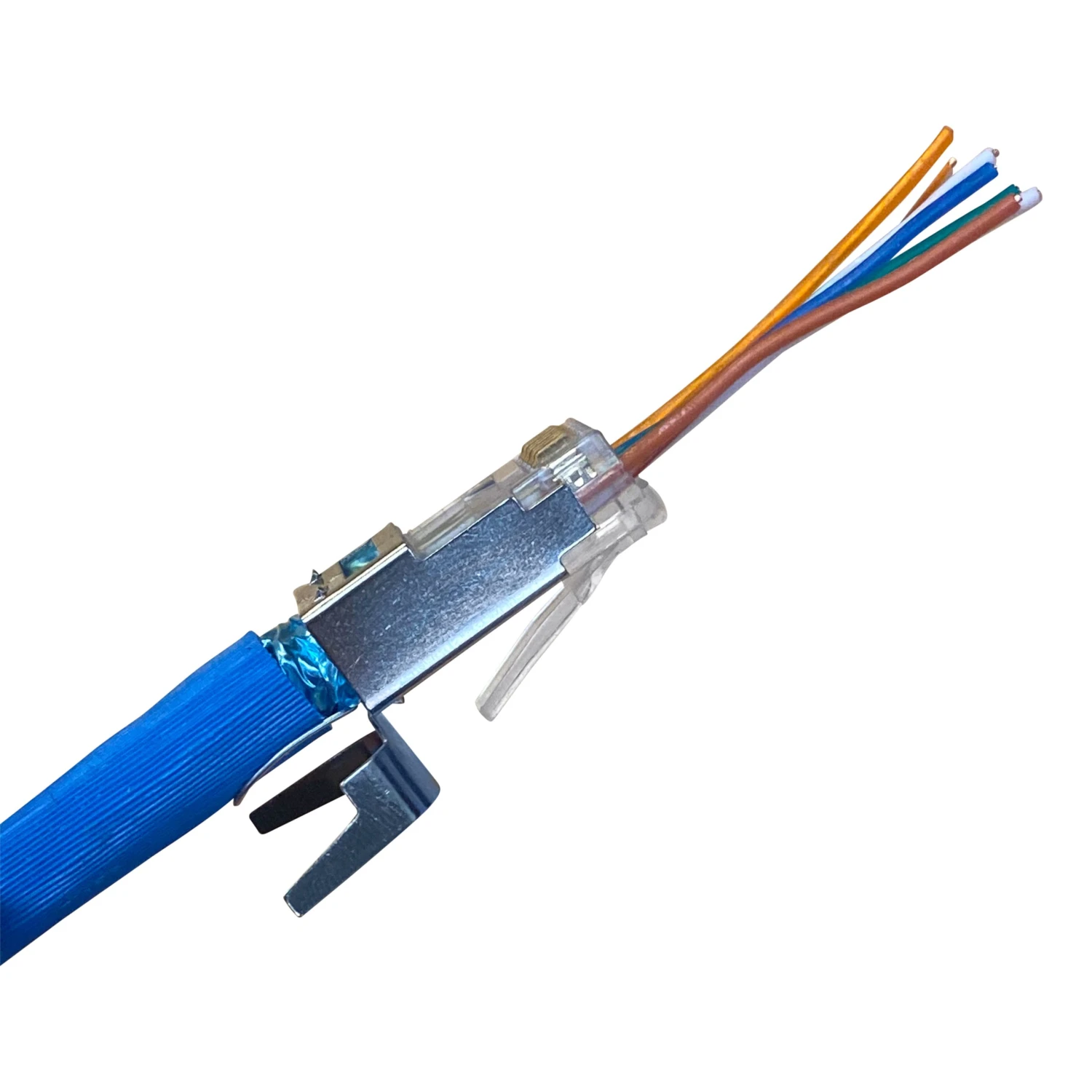

• CAT6A cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards

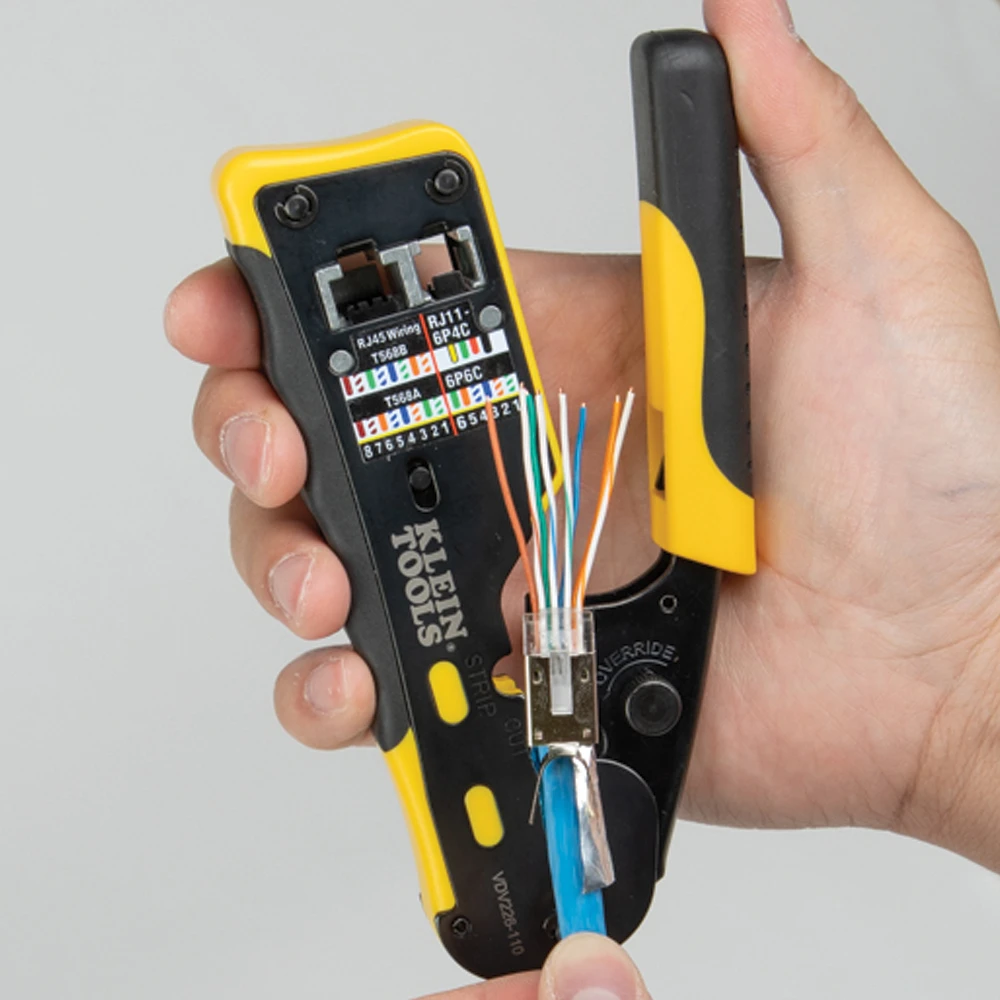

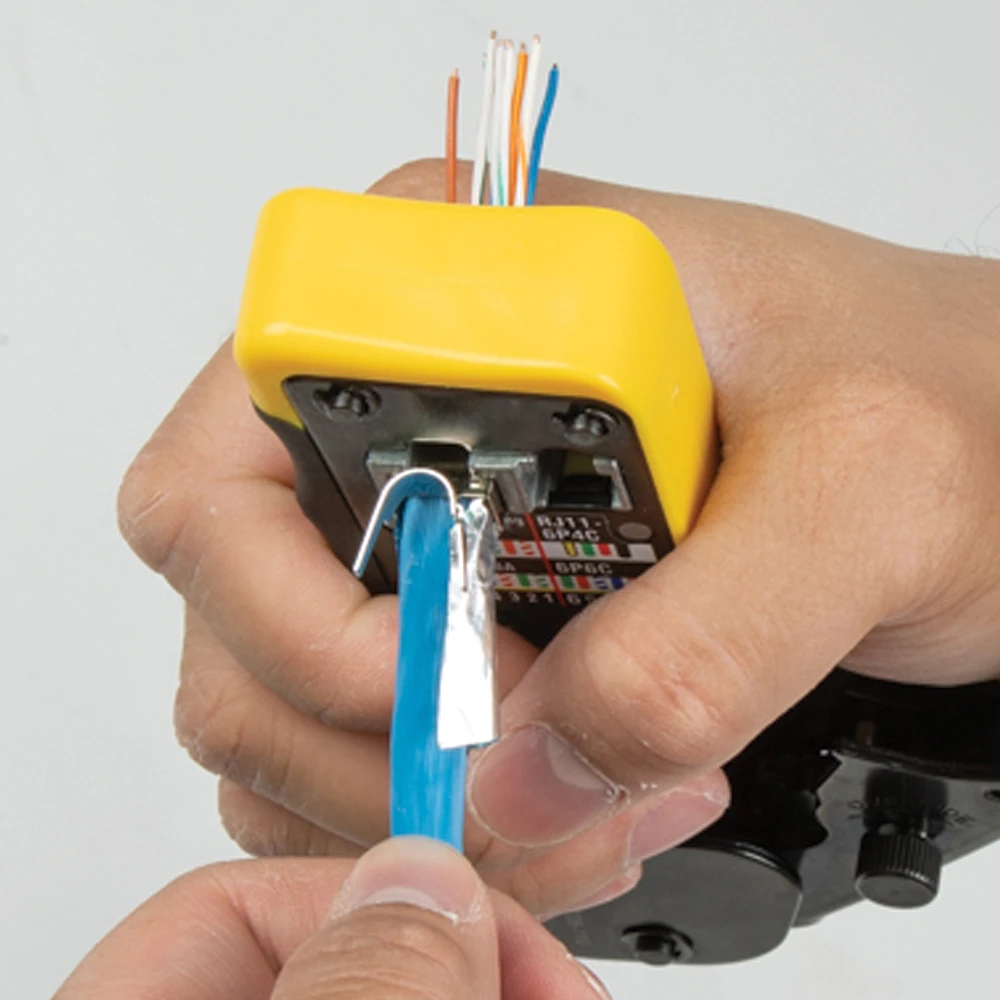

• Requires pass-through type crimping tool (Cat. No. VDV226-110 recommended)
• 8 position, 8 contact pass-through type data plugs for solid or stranded wire
• Category 6A performance per TIA/EIA-568-B.2
• 50-Pack
• 50µ-inch gold plating on all contact surfaces

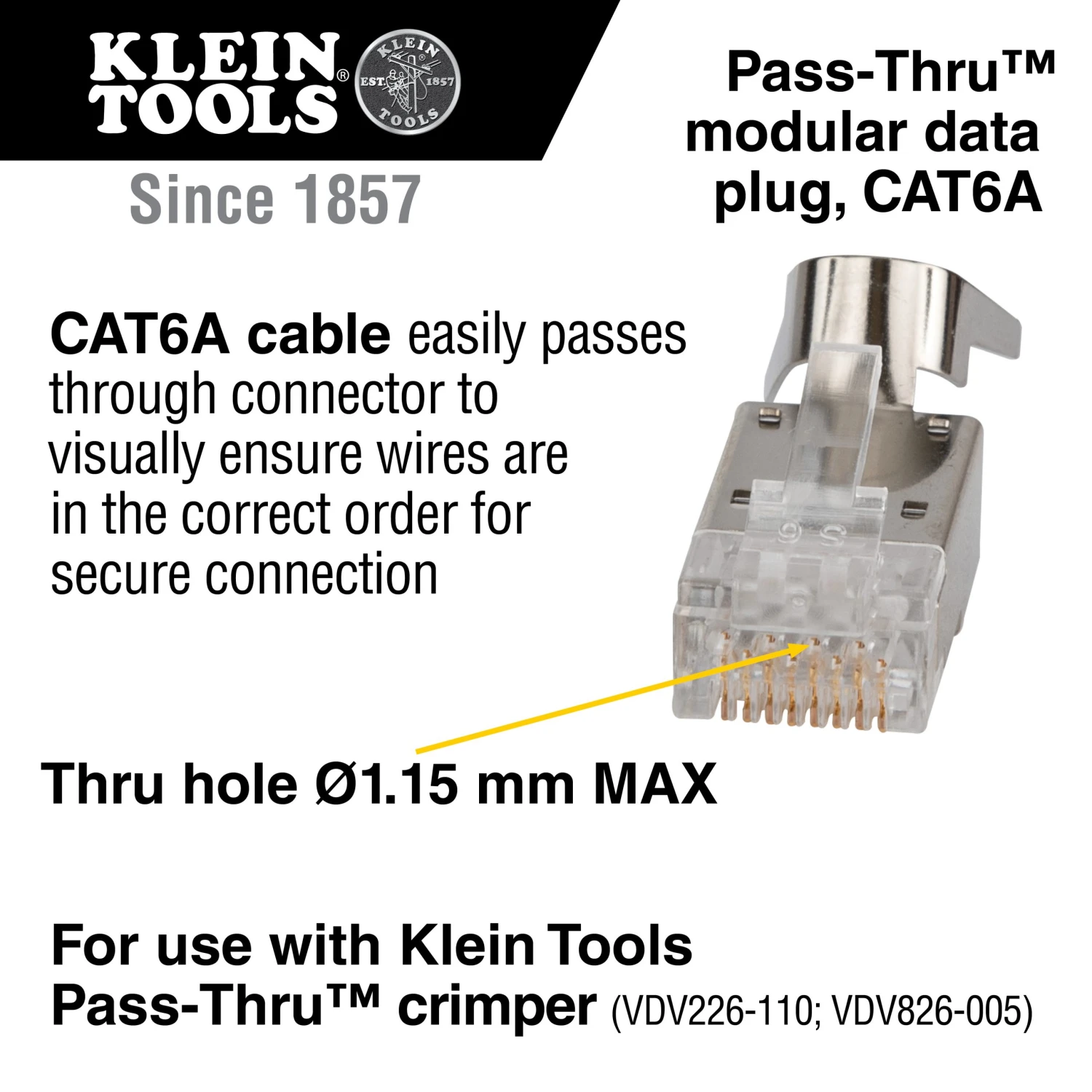

• Max diameter for CAT6A Pass-Thru™ Connectors is 0.043” (1.1 mm)

Specifications:

• Type: Modular
• Application: Voice and Data
• Special Features: Pass-Thru™ Technology; Meets All PoE+ Standards
• Overall Length: 0.8” (2 cm)
• Overall Height: 0.6” (1.5 cm)
• Overall Width: 0.4” (1 cm)
• Material: PVC plastic; Gold-plated contacts
• Connector Type: RJ45
• Cable Type: CAT6A STP and Larger Diameter CAT6
• Position & Contacts: 8P 8C
• Connector Colour: Clear
• Solid Conductor Wire: Yes
• Stranded Conductor Wire: Yes
• Package Quantity: 50
• Weight: 6.05 oz (171 g)

UPC:

• 092644583919
