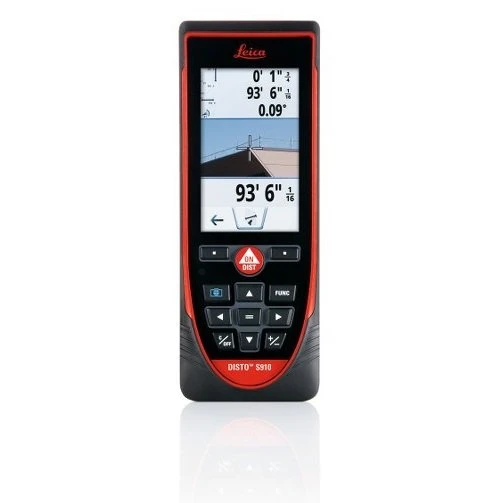

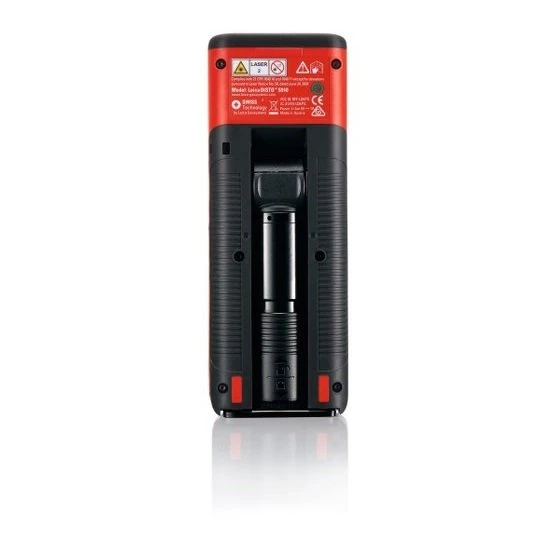

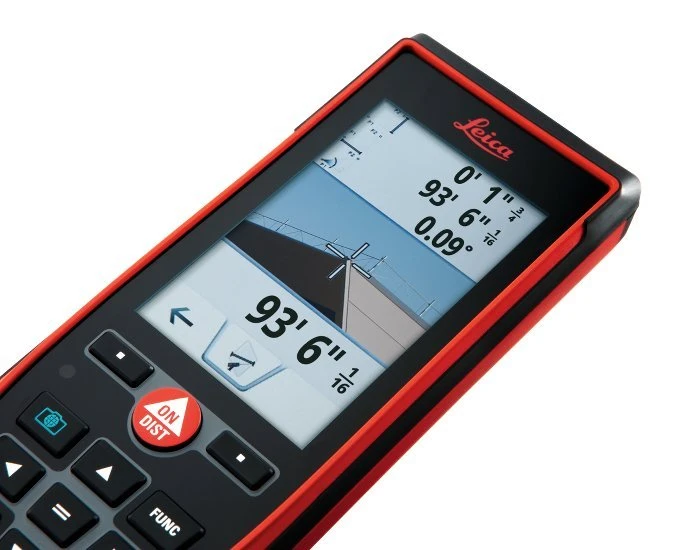

Leica DISTO S910 Pro Pack Touch Laser Distance Meter Bluetooth 887900

Description:

• The Leica DISTO S910 Pro Pack includes the S910, TRI 70 tripod, GZM3 Target plate, Leica carrying case, and the new FTA 360-S
• The S910 is the first LDM that captures multiple, accurate measurements in three dimensions from a single location, radically improving the efficiency of common measuring tasks

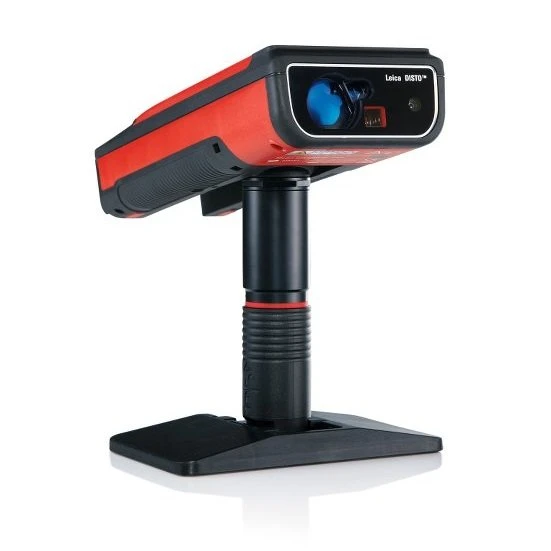

• Smart Base — a biaxial pivot integrated with the circuit board — is the key hardware innovation. Combined with a more powerful laser, a 360° tilt sensor, and new software –SmartBase enables the S910 to measure the distances and angles between multiple points
• SmartBase facilitates three new remote measurement  functions:
  • Point to Point (P2P): Measure the tie distance between two points, even if you are hundreds of feet from your target. Shoot Point 1 then Point 2 and the S910 displays the distance between them. Widths, heights, diagonals, gaps, it doesn’t matter: Just measure the start and end point and the distance is displayed
  • Smart Area: Shoot the corners of any polygon to determine the area of walls, floors, even complex roof shapes
  • Smart Angle: Shoot three points to measure any angle (including outside angles, which is a first)

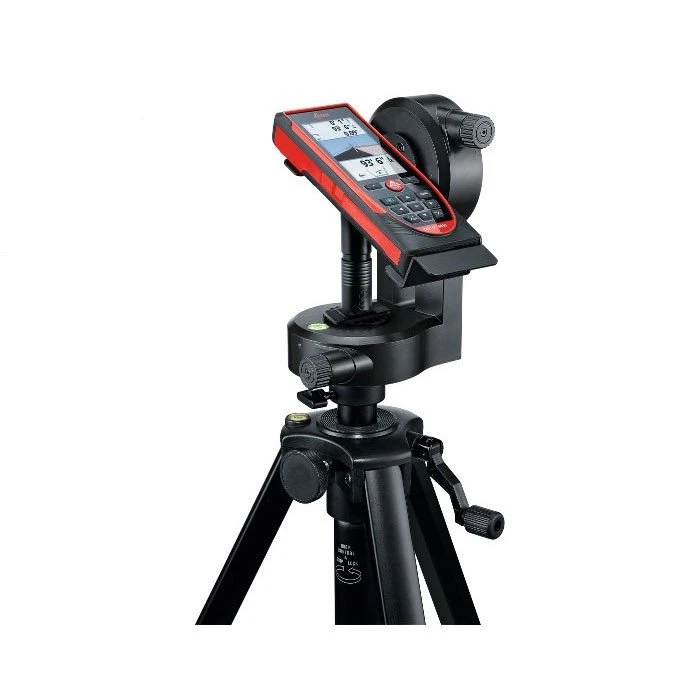

• In the vast majority of cases you will want a tripod to use these functions.  In addition to an S910, the Pro Pack includes a TRI70 Tripod and a FTA 360-s adapter

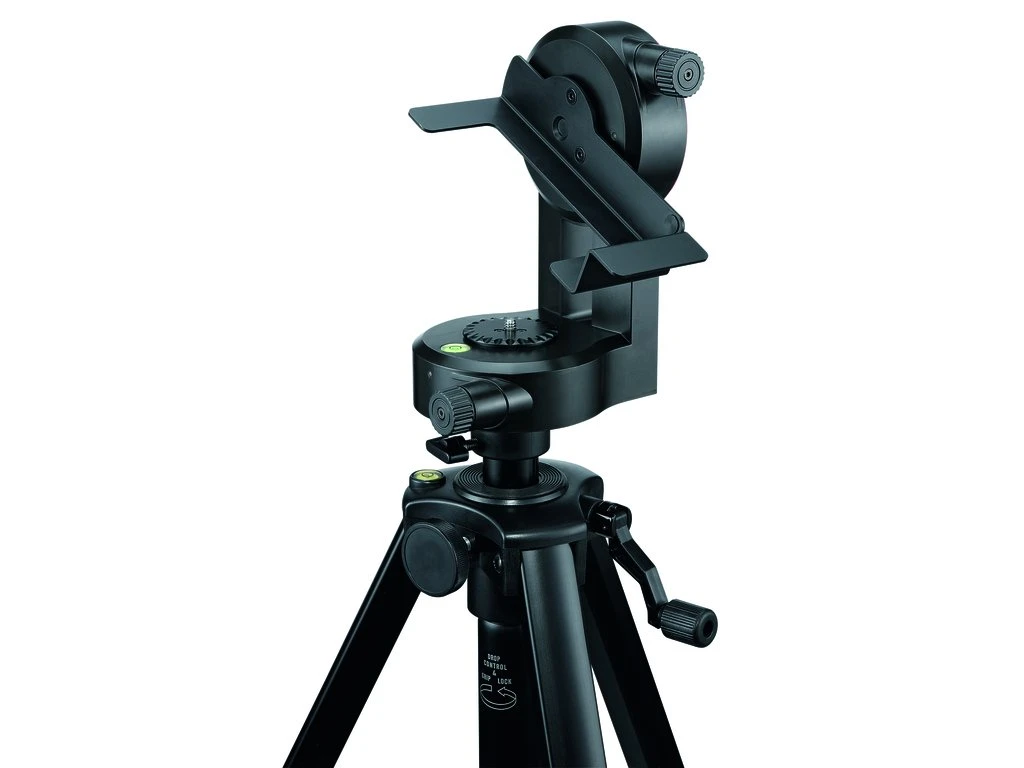

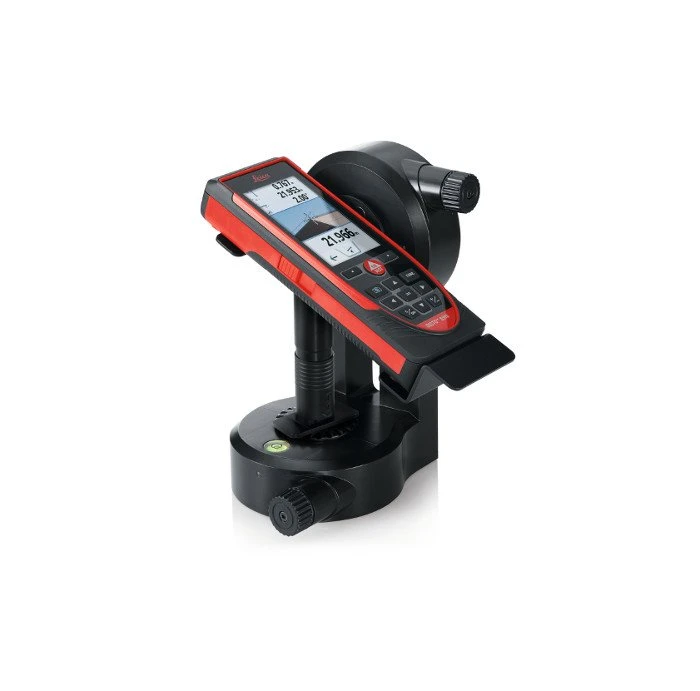

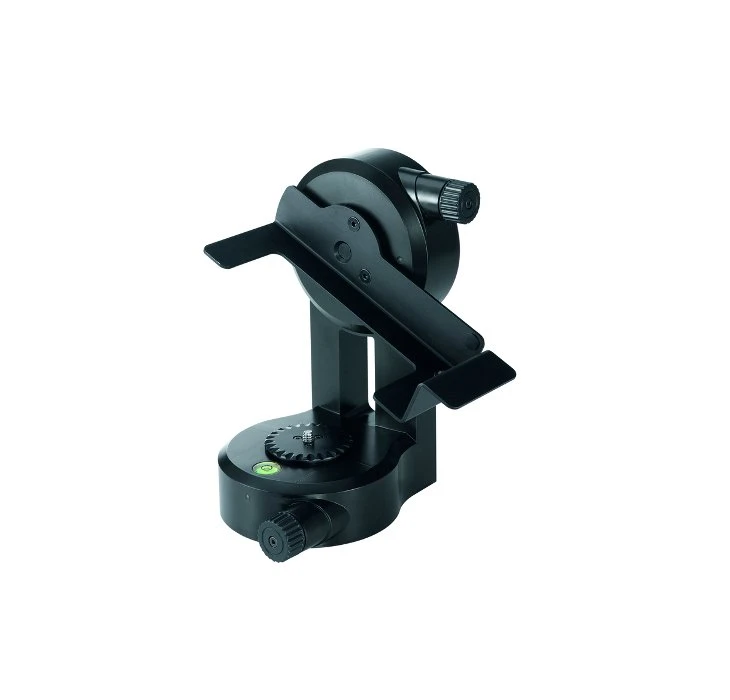

• Even with a tripod and outdoor pointfinder camera, placing your laser point exactly where you want it can be challenging, especially at longer distances. The FTA 360-S is a micro-adjustable tripod adapter. Point and shoot to get close, then tweak the knobs ever so slightly to adjust your spot by millimeters

Capture and Export Measurement Data:

• The S910 connects to compatible mobile apps with Bluetooth and exports DXF files over WiFi
• 10 “Nice to Have” Features in an LDM
• 7 Questions to ask before you buy a Laser Distance Meter (LDM)
• 10 “Must Have” Features for a Laser Distance Meter
• Improving LDM performance outdoors – How can I see the laser spot better?

Functions:

• Distance measurement
• Minimum / maximum measurement
• Subtraction / addition
• Area / volume measurement
• Painterfunction
• Tilt measurement
• Smart Horizontal  Mode
• Sloped object measurement
• Height tracking
• Height profile measurements
• Pointfinder with 4x zoom
• Camera function
• Measure with the picture
• Personalized favourites
• Touch screen
• Compass
• Point-to-Point measurements
• Smart angle measurement
• Smart area measurement
• DXF data capture
• WLAN data transmission
• Bluetooth® SMART

Specifications:

• Typical measuring accuracy ± 1 mm
• Range 0.05 up to 300 m
• X-Range Power Technology
• Measuring units m, ft, in
• Distance in m
• Ø of the laser dot in mm 10, 50, 100 m
• 6, 30, 60 mm
• Smart Base measuring range
• Horizontal
• Vertical
• 360°
• -40° to 80°
• Distance in m
• Typical tolerance of the P2P function 2, 5, 10 m
• 2, 5, 10 mm
• Levelling range ± 5°
• Pointfinder with 4x zoom
• Overview camera
• File format jpg, dxf
• Memory for CAD files 20 files, each with 30 points
• Free software for Windows
• Free App iOS / Android
• Data interface* Bluetooth® Smart, WLAN
• Measurements per set of batteries up to 4000**
• Batteries  Li-ion rechargeable
• Charging time  4h
• Protection class IP 54
• Dimensions 164x61x32 mm
• Weight with batteries 290 g

Includes:

• Leica DISTO™ S910 laser distance meter
• Smart Base Extension
• Holster
• Hand loop
• USB charger incl. 4 plugs
• Carry Case
• Tripod
• FTA360S adaptor
