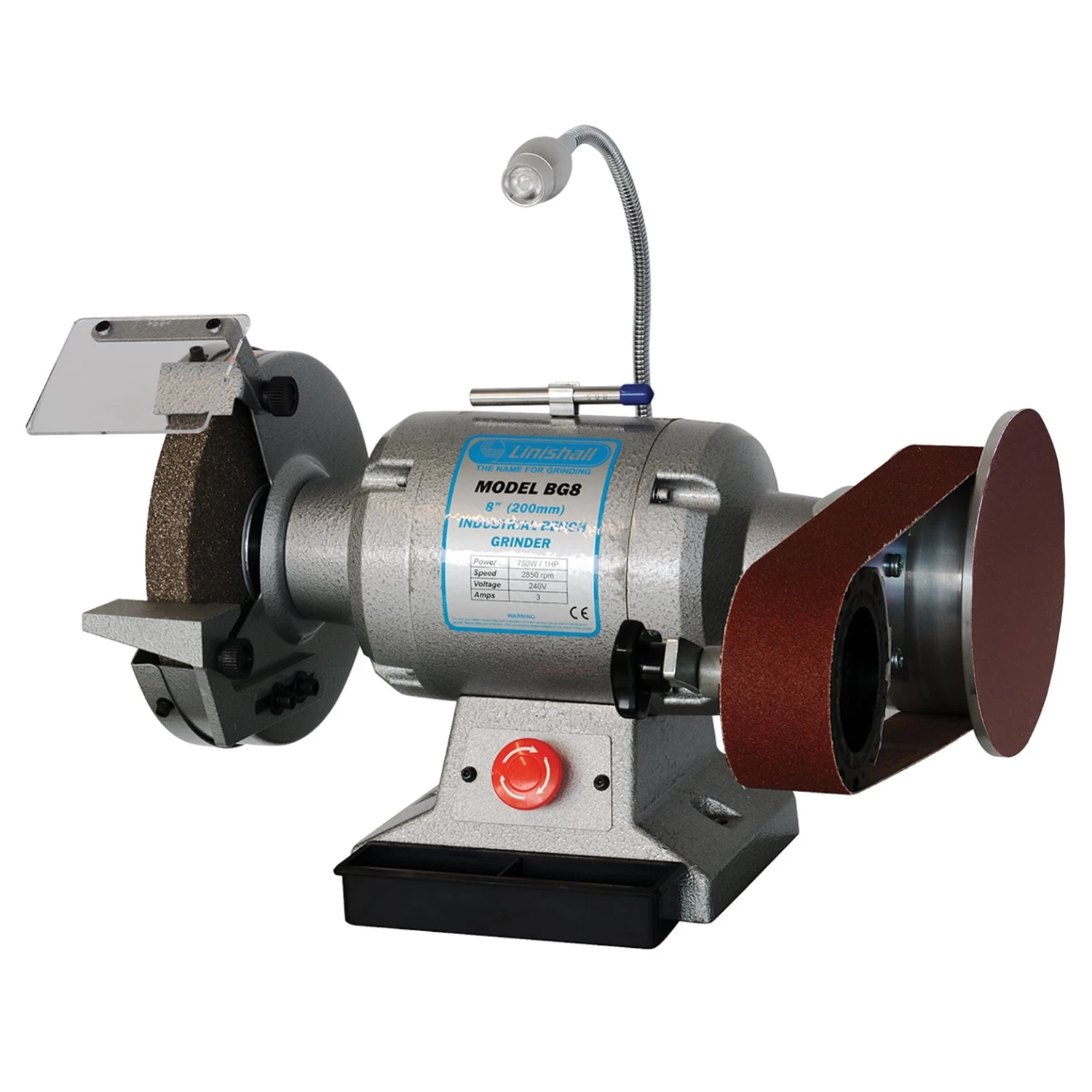

Linishall BG8/915 8″ 200mm Bench Belt & Disc Grinder

Description:

• Model BG8/915 consists of a 915 Belt & Disc Grinding attachment fitted to the Linishall 8” (200mm) Heavy Duty Bench Grinder
• The Linishall Heavy-duty Industrial Bench Grinder is the first choice for all applications where reliability, long-life and usability are important. Unique adjustable eyeshields with magnifying glass assist in safe, accurate finishing or roughing of all types of componentry, tooling, etc.
• Optional additions include a pedestal stand, belt and disc grinding attachment and a mitre table

Features:

• Supplied fully assembled and tracked by technician
• Can be fitted on Pedestal for a complete package
• Model BG8/915 consists of a 915 Belt & Disc Grinding Attachment fitted to the Linishall 8” (200mm) Heavy Duty Bench Grinder
• Secure mounting to ensure smooth linishing operation
• Top platten for flat surface grinding
• 180mm sanding disc
• Grooved contact wheel to avoid belt hop on lap joint belts & cooler operation
• Sealed for life bearings
• Large handle for easy tracking adjustment
• Pre-tracked during assembly by technician
• Emergency “E-STOP” Switch
• Tensioner locking lever designed for easy belt changing
• 50 x 915mm abrasive belts available in a variety of grits and materials to suit grinding such as steel, stainless steel, ceramics, timber, plastics, carbide etc.
• Attachment can be rotated 360 degrees

Specifications:

• Grinding Wheel Diameter: 200mm (8”)
• Motor: 750W (1.0HP)
• Shaft Dia. (Wheel Bore): 16mm (5/8)
• Thread (Nut): M16 x 2.0
