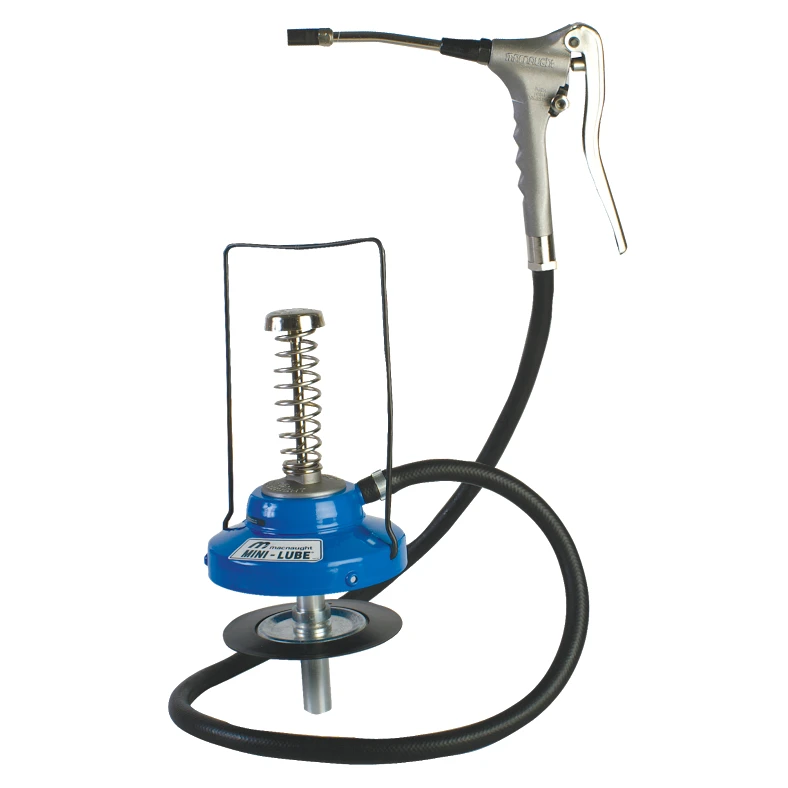

Macnaught K7-01 MINILUBE® Portable High Pressure Manual Greasing System K7

Description:

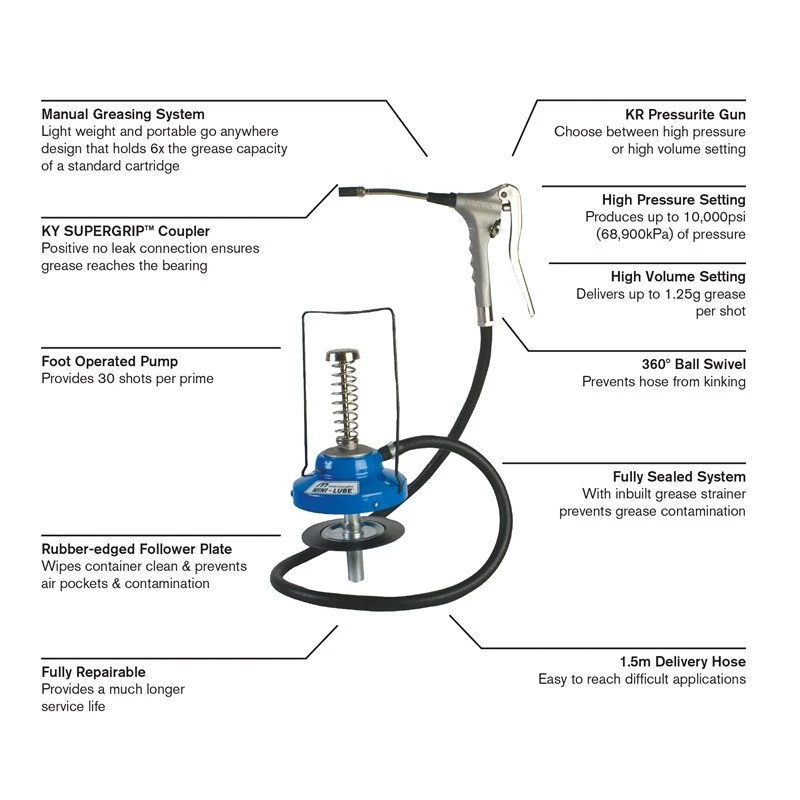

• The K7 MINILUBE® Portable High Pressure Manual Greasing System provides high-volume/high-pressure greasing in a compact and portable package. It consists of two main components, a foot operated spring-loaded pump, that dispenses grease from the container to the hose and gun and a patented high pressure/high volume KR pressurite™ gun. When the gun is set on the high volume position the gun will deliver up to 5,000 psi and when set on the high pressure setting the gun will deliver a lower volume of grease, but at higher pressures ( up to 10,000 psi). The K7 is an economical alternative to the more expensive air-operated greasing systems

Features:

• Compatible with 2.5kg containers
• Can be used as a backup for power operated systems – In case of a systems malfunction or breakdown eg. power failure.
• Manual greasing system – Suitable for users who need a high-pressure greasing capability but don’t have or can’t use air-powered equipment.
• Light weight and portable – Holds more grease than a conventional handgun so it can be easily transported to the application.
• Up to 6 times the grease capacity of a cartridge – less down time changing grease cartridges
• Self air bleeding system when first used – No air purging necessary when changing containers
• Manually operated & light weight with carry handle – Portable go anywhere system.
• 2 way KR patented Pressurite Gun – Two grease guns in one
• High pressure / High volume switch – Can deliver up to 5,000psi on the high volume setting or 10,000psi on the high pressure setting
• Pressurite gun offers high volume greasing up to 5,000psi – High volume greasing offers superior performance compared to hand held manual grease guns
• Pressurite gun offers high pressure greasing up to 10,000psi – Air operated performance, clears blocked or damaged grease nipples
• Fully sealed greasing system – Clean grease to the bearing every time
• Handles most greases up to NLGI No.2 viscosity – Versatility of use
• Easy push-down foot operated, spring loaded pump – Provides 30 shots at the gun, no pressure developed in container, allows one-handed operation
• Rubber edged follower plate – Wipes container clean to use all of the grease in the container, prevents air pockets and contamination
• KY Supergrip™ Coupler – Positive, no leak connection. Ensures grease gets to the bearing
• Inbuilt grease strainer – Ensures clean grease to the bearing
• Fully repairable – Provides a longer service life
• 1.5m grease delivery hose – Easy to reach difficult applications, transfer only / Maximum 280psi
• 360° swivel to gun – Prevents hose kinking / twisting. Easy one handed operation
• Range of push-on / quick release greasing accessories available – Increased versatility / flexibility for dif- ferent applications

Technical Specifications:

• High volume delivery pressure up to 34,450kPa (5,000psi)
• High pressure delivery pressure up to 68,900kPa (10,000psi)
• Provides up to 30 shots of grease with each prime
• KY SUPERGRIP™ 3 jaw high pressure coupler
• Up to 0.45g per shot (High pressure setting)
• Up to 1.25g per shot (High volume setting)
• Maximum viscosity – Up to NLGI 2
• Compatible with 2.5kg grease containers for contamination free greasing or bulk fill via a J3 Transfer Pump
• Wetted parts – Aluminium, steel, nitrile rubber
• 1.5m Flexible delivery hose

Includes:

• K7 MINILUBE® Portable Greasing system
• KR PRESSURITE gun
• 1.5m Flexible delivery hose
• Follower plate

Please Note:

• The K7-01 MINILUBE® does not include a 2.5kg container

UPC:

• 9317147732918
