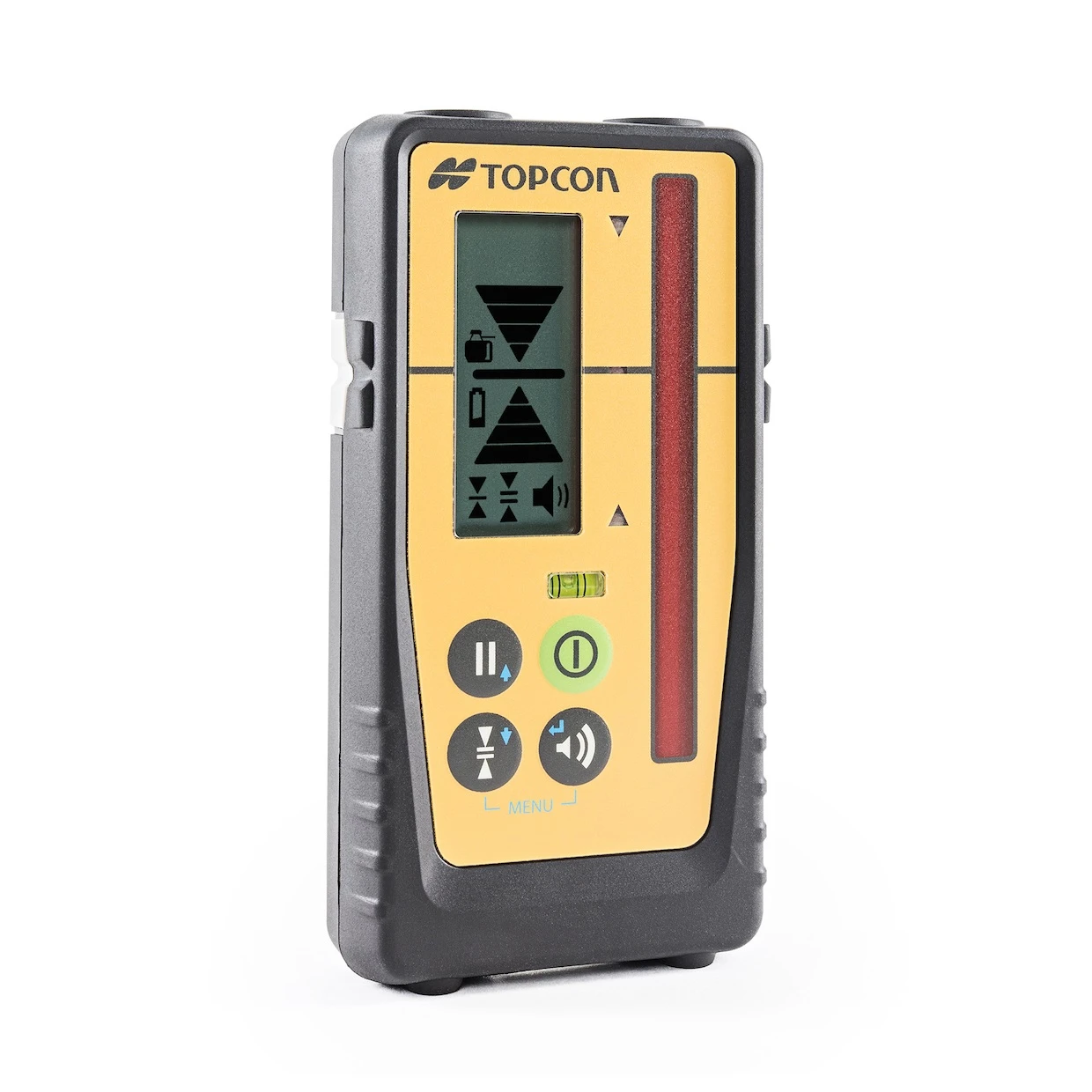

Topcon LS-100D Compact Digital Laser Sensor Receiver With Clamp & Batteries 1026030-01

Description:

• Topcon Positioning Group announces the release of the latest addition to its line of compact digital laser sensors — the LS-100D. The sensor digitally displays the offset value to on-grade, which is designed to help make elevation and vertical alignment control easier and faster for any application
• “The LS-100D features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures,” said Kris Maas, director of construction product management. “The large and bright LCD displays (front and back) feature 9-channels of grade information and digitally display the distance to on-grade. By pressing the hold button, the display is locked so the user can conveniently read the results.”
• The sensor offers three colored LED’s and a magnet mount for vertical operation, which is designed to be useful for steel erection or operator grade-checking while excavating. Alert icons appear on the LCD if the accompanying Topcon rotating laser instrument is disturbed (HI alert) or when the laser battery is low

Features:

• Topcon’s LS-100D compact digital laser sensor digitally displays the offset value to on-grade to help make elevation and vertical alignment control easier and faster for any application
• Extra-wide beam capture sensor rejects interference from strobe light exposure

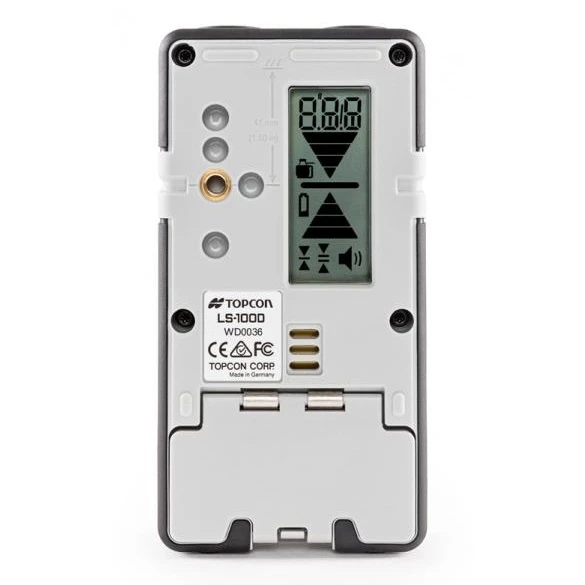

• Large LCD displays on front and back
• 9 channels of grade information
• Lockable display
• Three colored LEDs
• Magnet mount for vertical operation
• Alert icons on LCD if Topcon rotating laser instrument is disturbed or when laser battery is low

Specifications:

• Working Range (diameter) 800 m with the RL-H4C, RL-SV2S, and RL-200 Series
• Vertical Detecting Range 90 mm (3.5 in.); (-30 mm to +60 mm) (-1.1 in to +2.3 in.)
• LCD Digital Readout Range 70 mm (2.7 in.); (-20 mm to +50 mm) (-0.7 in. to +1.9 in.)
• Horizontal Detecting Range ±45º
• Strobe Light Suppression Yes
• Unit mm / cm / inch / fractional inch
• On-Grade Resolution ±0.5 mm (±0.02 in.) ±1.0 mm (±0.05 in.) ±2.0 mm (±0.10 in.) ±5.0 mm (±0.20 in.) ±10.0 mm (±0.50 in.)
• LCD Grade Indicators 9 Channels
• LED Grade Indicators Orange, Green, Red (On/Off selectable)
• Display LCD on each side
• Buzzer Loud/Low/Off selectable
• Bubble Tube Yes
• Warning Icons HI Alert, Low
• Battery (for the RL-H4C, RL-SV2S, and RL-200 Series) Battery One AA/LR6 dry-cell battery
• Operating Time Up to 45 hours with alkaline batteries
• Battery Level Indicator LCD Icon
• Auto Shut-off Approx. 30 minutes
• Dust/Water Rating IP67 (IEC 60529)
• Operating Temperature -20°C to 50°C
• Dimension (l x w h) 134 x 69 x 25 mm
• Weight 190 g (including one AA/LR6 battery)

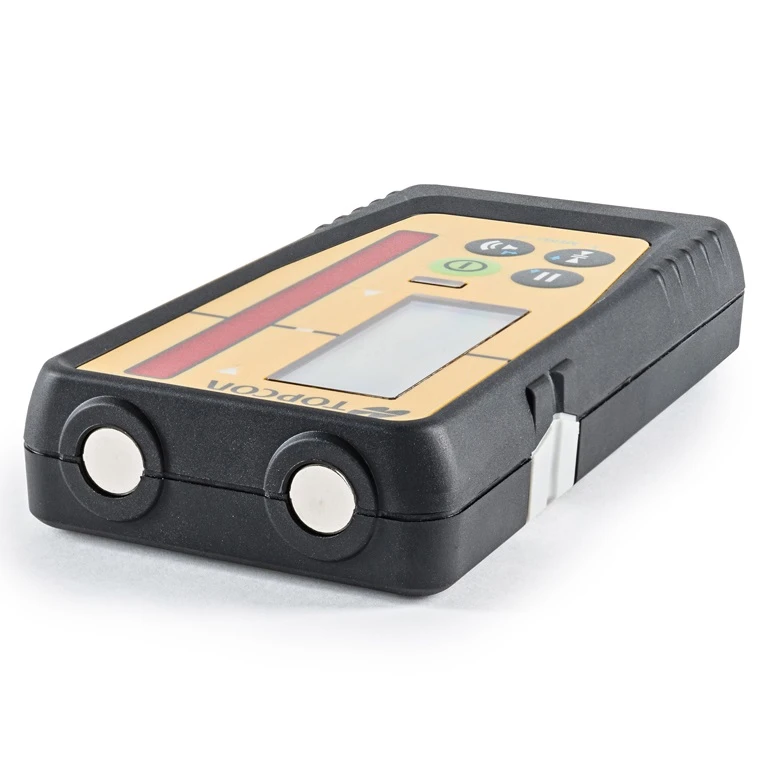

• Magnet Mount Two round magnets on top

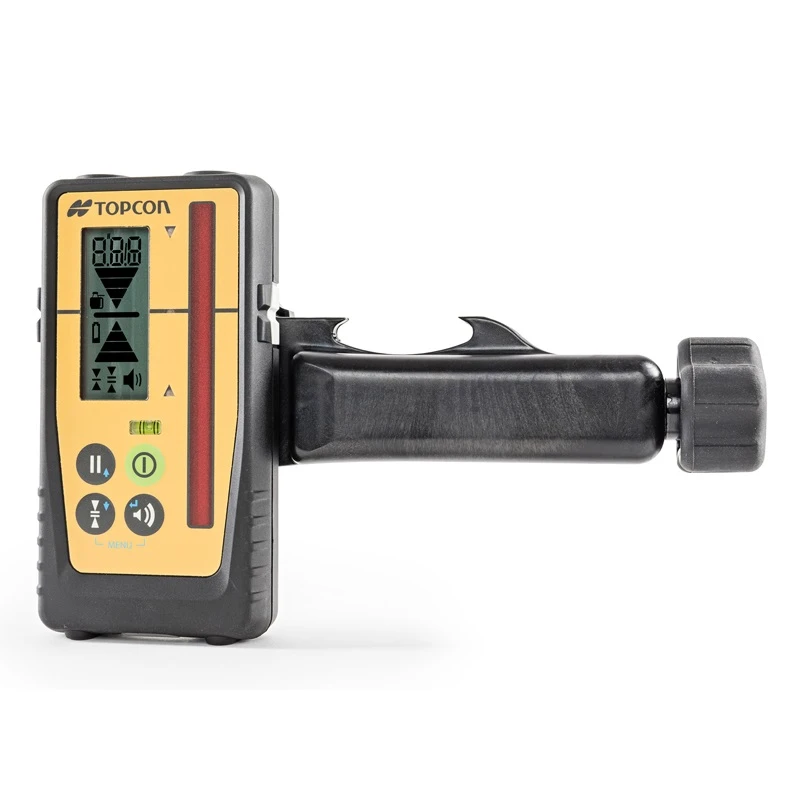

• Sensor Holder 100 Screw mount (standard component)
