Tormek SVS-50 Multi Jig

Features:

• Tormek SVS-50 Multi Jig is designed for sharpening turning skew chisels, parting and beading tools, roughing gouges and straight carving gouges up to 50mm width
• The Multi Jig consists of a housing and two interchangeable seats for different types of tools, the open seat and closed seat. That really makes this two jigs in one

The closed seat:

• For square and skew chisels

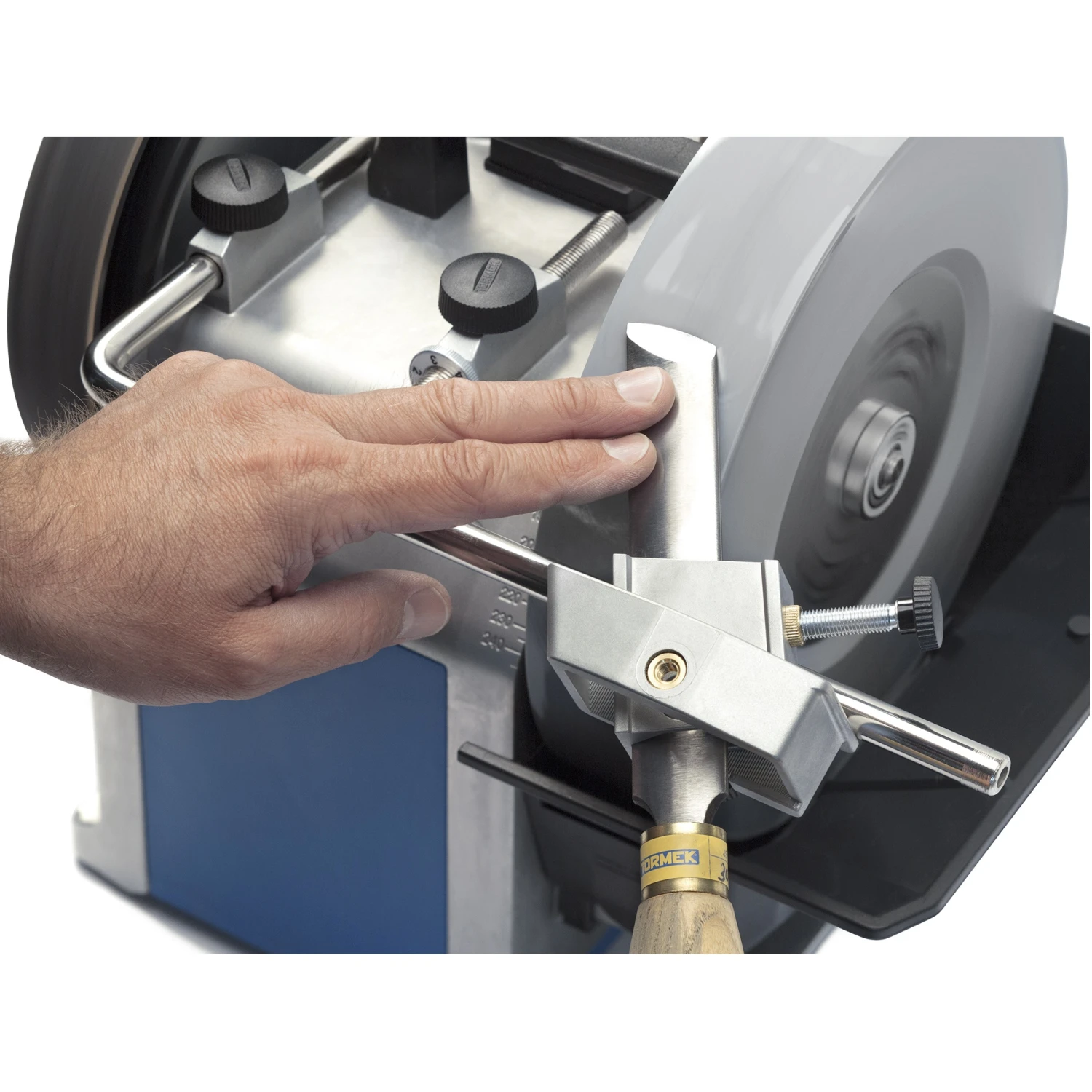

• The closed seat has been developed for the precision sharpening of square and skew chisels for woodturning and woodcarving. Since the chisel is mounted in the centre of the seat, you only need to mount the tool once for grinding both bevels. When one side is ready, you simply turn the jig upside down and sharpen the other side until they are symmetrical
• Thanks to a unique and patented design, the jig also copes with oval section skews. The jig aligns the skew so that it is parallel with the universal support and you can sharpen both straight and curved edges. Max width of skews 32 mm (1¼”)

The open seat

• For roughing gouges, parting tools and wide carving gouges

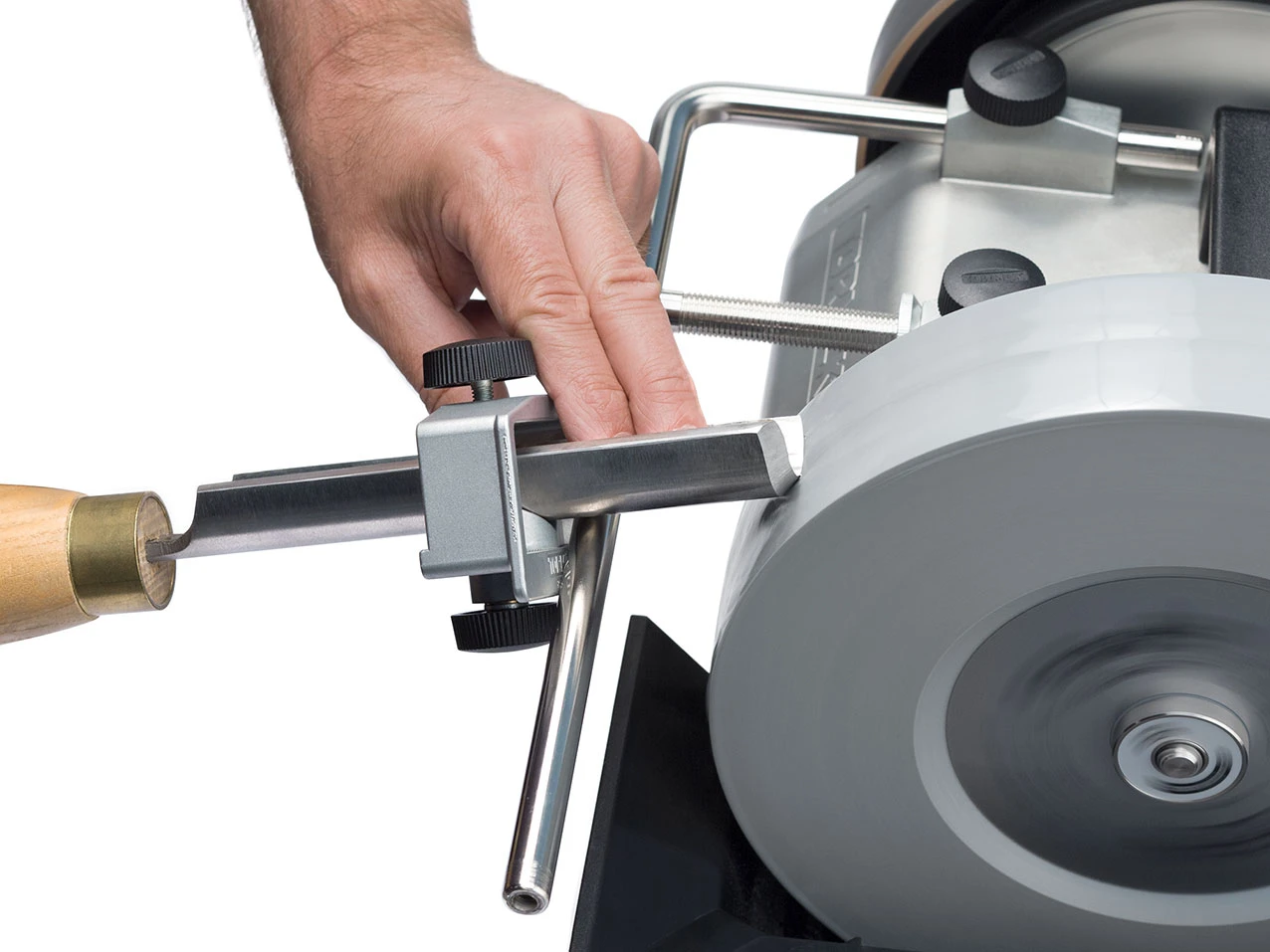

• The open seat, where the tool is fixed with a top screw, is used for tools which have the edge ground square across the shank, such as parting and beading tools, roughing gouges and wide carving gouges up to 50 mm (2″) wide. The seats are mounted with a bottom screw, which also enable you to choose the skew angle

Sharpening woodturning tools:

• SVS-50 together with the Turning Tool Setter
• For sharpening woodturning tools, we highly recommend you to use the SVS-50 jig together with the TTS-100 Turning Tool Setter. That way you can exactly replicate the shape and edge angle over and over again. Also, it will save you time since you only remove a minimum amount of steel at each sharpening
• Wet grinding on your Tormek gives you a very sharp edge that will last much longer. A really sharp gouge cuts easily and you will notice it gives the wood a very fine surface, often there is no need for sanding
• Using SVS-50 on a bench grinder
• For woodturning tools, if you have a new tool and need to remove a lot of steel in order to change a profile, you can with the mounting set BGM-100 also use SVS-50 on a bench grinder. But here you need to pay attention so that you do not burn the edge. After the initial rough shaping on a bench grinder, keep the tool in the jig and move over to the Tormek machine to give the edge the final sharpness

Please Note:

• Tormek machine is not included and is only for illustration purposes and is sold separately

UPC:

• 7392485002529
