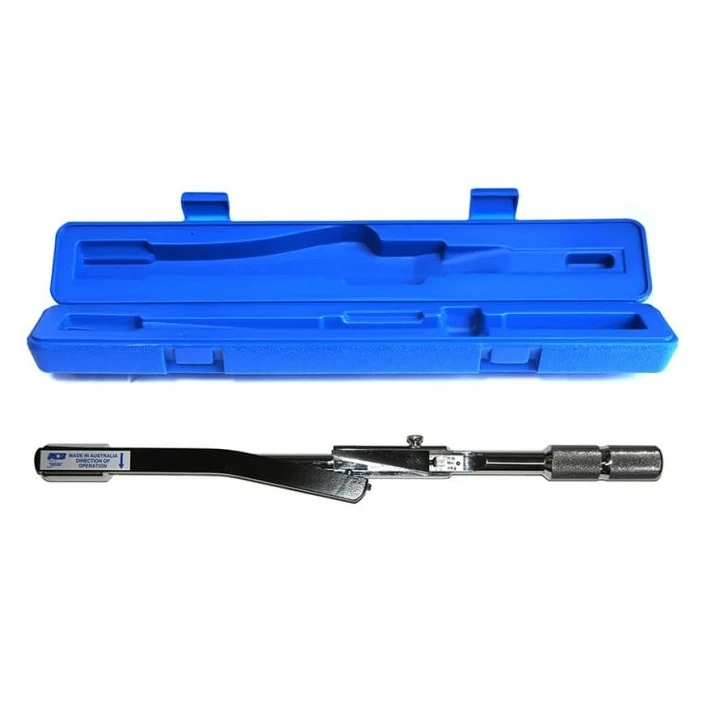

Warren & Brown 321500 Deflecting Beam Torque Wrench 3/8″ Dr. 5-120Nm 4-90ft.lbs.

Description:

• The Warren & Brown Deflecting Beam Torque Wrench is an icon in the Australian automotive industry and its unparalleled accuracy and durability has enabled it to stand the test of time and to still be regarded as an invaluable tool for any serious mechanic
• Deflecting Beam torque wrenches work by applying torque to a deflecting beam rather than a coil spring and since it has no wearing parts, the unique design ensures accuracy of +/- 2% throughout the range of the wrench
• The torque setting can be easily selected via a sliding scale which displays the torque units in ft.lbs, Nm and kg-cm
• The dual signal feature allows the user to see and also hear when the selected torque has been reached. When working in a noisy environment, the operator can see the signal mechanism release once the selected torque has been reached. Additionally, the signal release can also be heard and felt

Features:

• Dual-signal (see and hear when the wrench has reached the selected torque)
• Rigidity – all steel construction
• Accuracy +/- 2%
• Repeatability
• Durability – no wearing parts
• Meets or exceeds Australian standards
• Easy to use
• Certificate of calibration can be provided on request
• Lifetime warranty on Deflection Bar

Specifications:

• Part No. 321500
• Torque range (imperial) 4 – 90ft.lbs.
• Graduation (imperial) 2ft.lbs.
• Torque range (metric) 5 – 120Nm
• Graduation (metric) 5Nm
• Torque range (metric) 0 .5 – 12kg/m
• Graduation (metric) 0.5kg/m
• Square drive 3/8″
• Adaptor supplied 390040
• Length (cm) 37
• Packed weight (kg) 1.3
